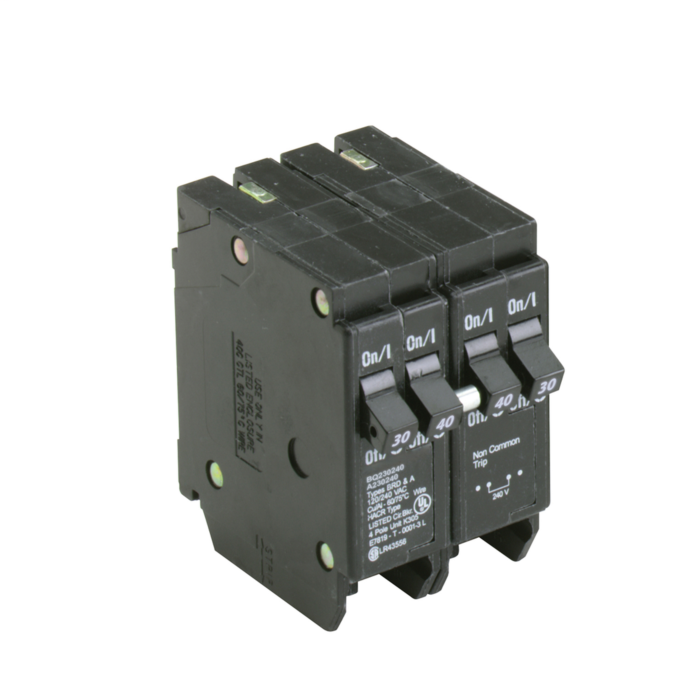

Type BQ 1-inch CTL Plug-on Breaker
Brand | Cutler-Hammer |
---|---|
UPC | 786676371056 |
Store Location (Lititz, PA) | Aisle 08, Section D2 |
Package Length (in) | 2.80" |
Package Width (in) | 2.20" |
Package Height (in) | 1.80" |
Manufacturer Part Number | BQ230240 |
Type | Type BQ Quadplex Independent Trip |
Special Features | Includes Rejection Tab feature |
Amperage Rating | (1) Two-Pole 30A, (1) Two-Pole 40A |
Interrupt Rating | 10 kAIC |
Number Of Poles | Four-pole |
Voltage Rating | 120/240V |
Mounting | Plug-on |
Main Circuit Breaker | BQ |
Trip Type | Independent |
Wire Size | #14-4 AWG Cu/Al |
Quantity | Q28 |
Used With | Type BR Loadcenters |
Notes | All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated. |
