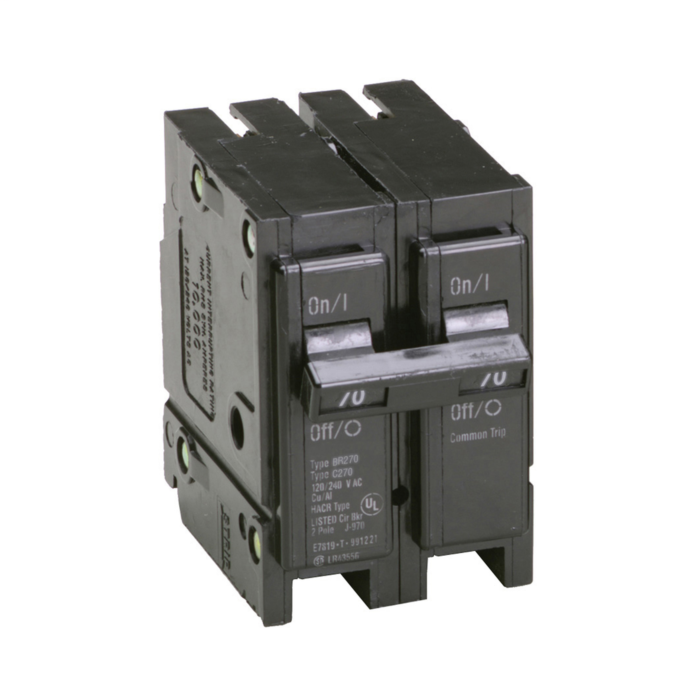

Type BR 1-Inch Plug-On Circuit Breaker
- All BR circuit breakers have rejection tab feature
Brand | Cutler-Hammer |
---|---|
UPC | 786676363150 |
Store Location (Lititz, PA) | Aisle 08, Section D2 |
Package Length (in) | 2.60" |
Package Width (in) | 2.20" |
Package Height (in) | 1.80" |
Manufacturer Part Number | BR270 |
Type | Type BR 1-Inch Plug-On Circuit Breaker |
Special Features | Used with Type BR Loadcenters |
Amperage Rating | 70A |
Interrupt Rating | 10 kAIC |
Number Of Poles | Two-pole |
Voltage Rating | 120/240V |
Mounting | Plug-on |
Main Circuit Breaker | BR |
Trip Type | Common |
Wire Size | #8-1/0 AWG Cu/Al |
Quantity | Q28 |
Used With | Type BR Loadcenters |
