Danco

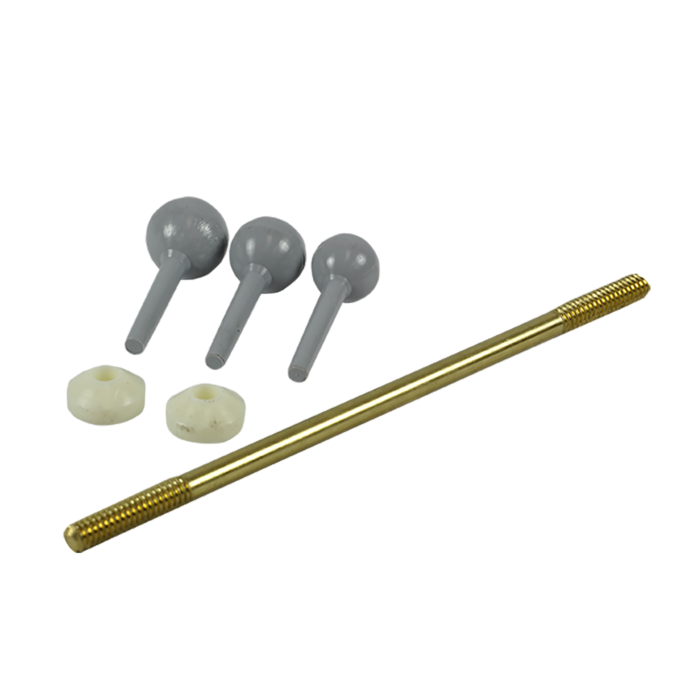

Universal Bathroom Pull Rod Assembly
SKU: DA88532
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$10.99
Features
Specifications
Downloads
The Danco Universal Ball Rod for Lavatory Pop-Up Drains connects a stopper to a lift rod. It has a durable brass construction that will endure the rigors of everyday use. The versatile design fit will fit most faucets and includes balls and cone washers for an easy do-it-yourself installation. Order yours today!
- REPLACES most ball rod assemblies and is intended for bathroom sink applications
- INCLUDES: (3) sizes of pop-up balls for versatility and (2) cone washers for easy installation
- BRASS ROD construction provides strength and durability
- DIMENSIONS: SMALL BALL Diameter = 15 mm (0.59 inch) with distance from edge of ball to end of gray rod = 30 mm (1.18 inch); MEDIUM BALL Diameter = 17 mm (0.67 inch) with distance from edge of ball to end of gray rod = 28.5 mm (1.12 inch); LARGE BALL Diameter = 18.3 mm (0.72 inch) with distance from edge of ball to end of gray rod = 27.5 mm (1.08 inch). Diameter of the gray rod tapers from about 5 mm (0.2 inches) where it meets the ball to about 4.5 mm at the tip. The ball rod is 150 mm (5.9 inch) in length and 5.5 mm (0.22 inch) in diameter. When you screw the ball rod into the ball, it will go in about 4 mm (0.16 inches)
- DOES NOT INCLUDE nut or rod clip
| Brand | Danco |
|---|---|
| UPC | 037155885329 |
| Store Location (Lititz, PA) | Aisle 07, Section H4 |
| Package Length (in) | 6.40" |
| Package Width (in) | 1.80" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | 88532 |
| Country of Origin | Taiwan |
