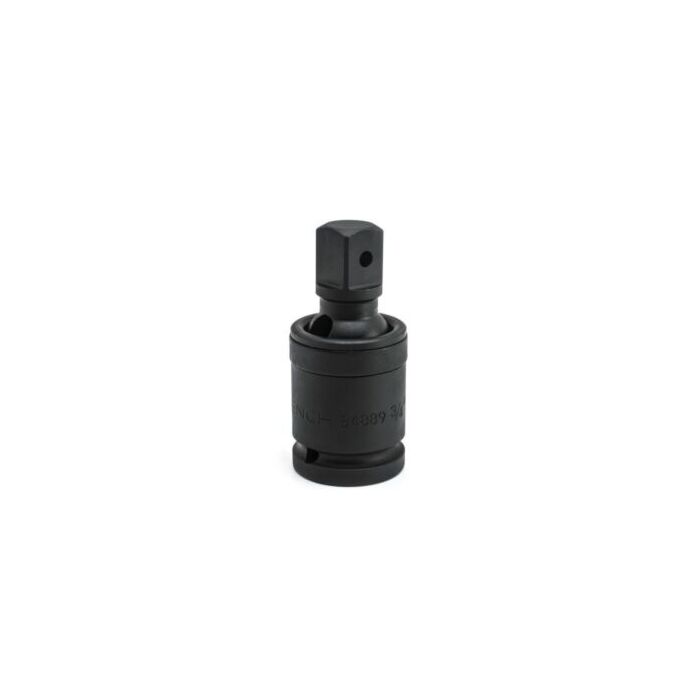

Universal Joint Impact
UNIV JOINT PINLESS IMPACT 3/8DR
UNV JNT IMP 1DR
UNV JNT IMP 3/4DR
1/2DR IMP UNIV JOINT
SKU: GW84-
SKU: GW84440
SKU: GW84296
SKU: GW84889
SKU: GW80671N
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$23.99
As low as:
Features
Specifications
Compared to even the best pinned impacts, X-Core™ Pinless impact tools deliver far greater durability and superior access. The exclusive four-lug ball-and-socket design of these GEARWRENCH universal-joints, sockets, and extensions provides the long-lasting strength and capability needed to take on the toughest automotive and industrial applications. When durability is key, the choice is clear. GEARWRENCH X-Core™ pinless.
- X-Core™ pinless joint design is 4x more durable than pinned products for increased strength
- Ball detent for secure socket retention
- 30° maximum operating flex angle
- Smooth 360° rotation for easier access
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Black oxide finish to resist corrosion
- High-visibility laser etched markings provide quick size identification
- Meets or exceeds ASME specifications
- No Warning
Compared to even the best pinned impacts, X-Core™ Pinless impact tools deliver far greater durability and superior access. The exclusive four-lug ball-and-socket design of these GEARWRENCH universal-joints, sockets, and extensions provides the long-lasting strength and capability needed to take on the toughest automotive and industrial applications. When durability is key, the choice is clear. GEARWRENCH X-Core™ pinless.
- X-Core™ pinless joint design is 4x more durable than pinned products for increased strength
- Ball detent for secure socket retention
- 30° maximum operating flex angle
- Smooth 360° rotation for easier access
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Black oxide finish to resist corrosion
- High-visibility laser etched markings provide quick size identification
- Meets or exceeds ASME specifications
- No Warning
GEARWRENCH offers a wide range of impact products in open stock & sets that are designed to deliver the performance and strength that the professional users require. They are made from chrome molybdenum alloy steel for exceptional strength and durability. Our sockets have a manganese phosphate coating to resist corrosion. The sockets also feature highly visible laser etched markings and a secondary size hard stamping. The sockets feature off-corner loading to reduce fastener rounding. The GEARWRENCH impact product family will allow the professional user to FORGE AHEAD.
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Through hole on square drive
- Pin hole can be used with pin and o-ring for secure socket retention
- Hard stamped size markings
- Manganese phosphate finish to resist corrosion
- Meets or exceeds ASME specifications
- No Warning
GEARWRENCH offers a wide range of impact products in open stock & sets that are designed to deliver the performance and strength that the professional users require. They are made from chrome molybdenum alloy steel for exceptional strength and durability. Our sockets have a manganese phosphate coating to resist corrosion. The sockets also feature highly visible laser etched markings and a secondary size hard stamping. The sockets feature off-corner loading to reduce fastener rounding. The GEARWRENCH impact product family will allow the professional user to FORGE AHEAD.
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Through hole on square drive
- Pin hole can be used with pin and o-ring for secure socket retention
- Hard stamped size markings
- Manganese phosphate finish to resist corrosion
- Meets or exceeds ASME specifications
- No Warning
GEARWRENCH offers a wide range of impact products in open stock & sets that are designed to deliver the performance and strength that the professional users require. They are made from chrome molybdenum alloy steel for exceptional strength and durability. Our sockets have a manganese phosphate coating to resist corrosion. The sockets also feature highly visible laser etched markings and a secondary size hard stamping. The sockets feature off-corner loading to reduce fastener rounding. The GEARWRENCH impact product family will allow the professional user to FORGE AHEAD.
- No Warning
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Manganese phosphate finish to resist corrosion
- Hard stamped size markings
- For 1/2" Impact drive tools
- Meets or exceeds ASME specifications
| Brand | GearWrench |
|---|---|
| UPC | 099575844409 |
| Package Length (in) | 1.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 4.60" |
| Manufacturer Part Number | 84440 |
| Country of Origin | China |
| Weight | 0.225 lbs |
| Type 1 | Universal Joint |
| Foreign Trade Code | 8466100175 |
| ASME Specification | B107.110-2012 |
| Coupon Headline | 3/8" Drive X-Core™ Pinless Impact Universal Joint |
| Dim. A: Drive End | 0.85 in |
| Dim. C: Overall Length | 2.16 in |
| Drive Tang Size | 3/8 in |
| Family Name | X-Core™ |
| Female Drive Size | 3/8 in |
| Finish | Black Oxide |
| Locking | No |
| Long Description | 3/8" Drive X-Core™ Pinless Impact Universal Joint |
| Magnetic | No |
| Male Drive Size | 3/8 in |
| Marking Style | Laser Etched |
| Material | Chrome-Molybdenum (Cr-Mo) |
| Overall Length | 2.16 in |
| Packaging | Hang Tab |
| Set | No |
| Table Description | 3/8" Drive X-Core™ Impact Universal Joint |
| Warranty | Full Lifetime |
| Brand | GearWrench |
|---|---|
| UPC | 099575844409 |
| Package Length (in) | 1.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 4.60" |
| Manufacturer Part Number | 84440 |
| Country of Origin | China |
| Weight | 0.225 lbs |
| Type 1 | Universal Joint |
| Foreign Trade Code | 8466100175 |
| ASME Specification | B107.110-2012 |
| Coupon Headline | 3/8" Drive X-Core™ Pinless Impact Universal Joint |
| Dim. A: Drive End | 0.85 in |
| Dim. C: Overall Length | 2.16 in |
| Drive Tang Size | 3/8 in |
| Family Name | X-Core™ |
| Female Drive Size | 3/8 in |
| Finish | Black Oxide |
| Locking | No |
| Long Description | 3/8" Drive X-Core™ Pinless Impact Universal Joint |
| Magnetic | No |
| Male Drive Size | 3/8 in |
| Marking Style | Laser Etched |
| Material | Chrome-Molybdenum (Cr-Mo) |
| Overall Length | 2.16 in |
| Packaging | Hang Tab |
| Set | No |
| Table Description | 3/8" Drive X-Core™ Impact Universal Joint |
| Warranty | Full Lifetime |
| Brand | GearWrench |
|---|---|
| UPC | 099575842962 |
| Package Length (in) | 2.30" |
| Package Width (in) | 3.05" |
| Package Height (in) | 5.10" |
| Manufacturer Part Number | 84296 |
| Country of Origin | Taiwan |
| Weight | 2.345 lbs |
| Type 1 | Universal Joint |
| Foreign Trade Code | 8466100175 |
| ASME Specification | Meets or Exceeds |
| Coupon Headline | 1" Drive Impact Universal Joints |
| Dim. A: Drive End | 2.12 in |
| Dim. C: Overall Length | 4.52 in |
| Drive Tang Size | 1 in |
| Female Drive Size | 1 in |
| Finish | Manganese Phosphate |
| Locking | No |
| Long Description | 1" Drive Impact Universal Joint |
| Magnetic | No |
| Male Drive Size | 1 in |
| Material | Chrome-Molybdenum (Cr-Mo) |
| Overall Length | 4.52 in |
| Packaging | Bagged |
| Set | No |
| Table Description | 1" Drive Impact Universal Joint |
| Warranty | Full Lifetime |
| Brand | GearWrench |
|---|---|
| UPC | 099575848896 |
| Package Length (in) | 1.75" |
| Package Width (in) | 1.70" |
| Package Height (in) | 3.80" |
| Manufacturer Part Number | 84889 |
| Country of Origin | Taiwan |
| Weight | 1.280 lbs |
| Type 1 | Universal Joint |
| Foreign Trade Code | 8466100175 |
| ASME Specification | Meets or Exceeds |
| Coupon Headline | 3/4" Drive Impact Universal Joint |
| Dim. A: Drive End | 1.73 in |
| Dim. C: Overall Length | 3.74 in |
| Drive Tang Size | 3/4 in |
| Female Drive Size | 3/4 in |
| Finish | Manganese Phosphate |
| Locking | No |
| Long Description | 3/4" Drive Impact Universal Joint |
| Magnetic | No |
| Male Drive Size | 3/4 in |
| Material | Chrome-Molybdenum (Cr-Mo) |
| Overall Length | 3.74 in |
| Packaging | Bagged |
| Set | No |
| Table Description | 3/4" Drive Impact Universal Joint |
| Warranty | Full Lifetime |
| Brand | GearWrench |
|---|---|
| UPC | 099575867163 |
| Package Length (in) | 5.70" |
| Package Width (in) | 4.55" |
| Package Height (in) | 1.50" |
| Manufacturer Part Number | 80671N |
| Country of Origin | Taiwan |
| Weight | 0.415 lbs |
| Type 1 | Universal Joint |
| Foreign Trade Code | 8466100175 |
| ASME Specification | B107.2 |
| Coupon Headline | 1/2" Drive Impact Universal Joint |
| Dim. A: Drive End | 0.508 in |
| Dim. C: Overall Length | 2.441 in |
| Drive Tang Size | 1/2 in |
| Female Drive Size | 1/2 in |
| Finish | Manganese Phosphate |
| Locking | No |
| Long Description | 1/2" Drive Impact Universal Joint |
| Magnetic | No |
| Male Drive Size | 1/2 in |
| Material | Chrome-Molybdenum (Cr-Mo) |
| Overall Length | 2.441 in |
| Packaging | Hang Tab |
| Set | No |
| Table Description | 1/2" Drive Impact Universal Joint |
| Warranty | Full Lifetime |
