Utility Boxes
SKU: E660
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2.29
Features
Specifications
Downloads

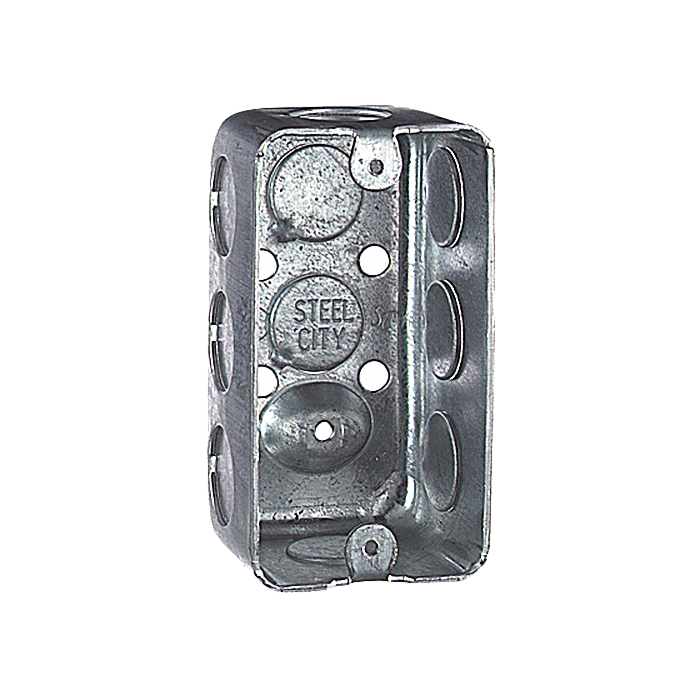

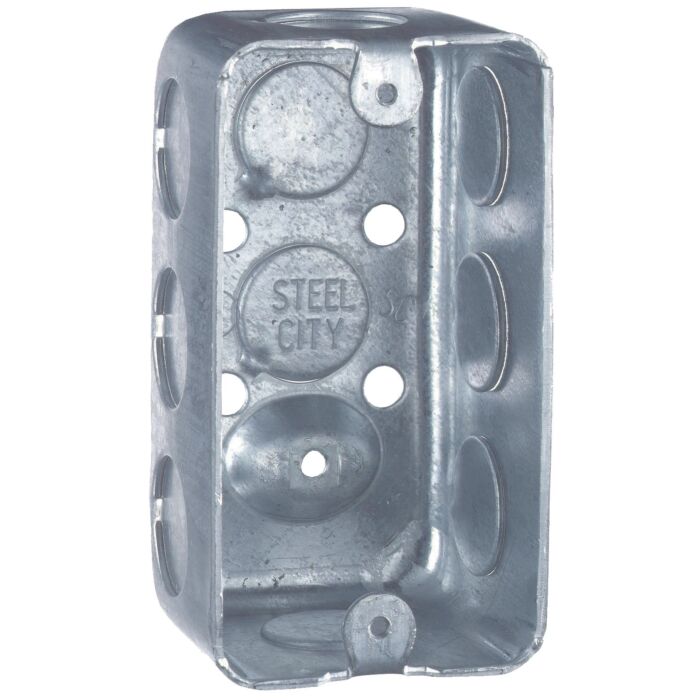

One Gang Utility Box, 13.0 Cubic Inches, 4 Inches Long x 2-1/8 Inches Wide x 1-7/8 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Drawn Construction, For use with Conduit
- Drawn construction
| Brand | Southwire |
|---|---|
| UPC | 837654061831 |
| Store Location (Lititz, PA) | Aisle 09, Section D6 |
| Package Length (in) | 3.40" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | 58361 1/2 |
| ETIM | EC000080 Surface mounted housing for flush mounted switching device |
| Assembly arrangement | Surface mounted housing |
| Mounting direction | Vertical |
| Material | Steel |
| Colour | Silver |
| Transparent | N |
| Width of device | 53.975mm |
| Outer Quantity | 50 |
| Outer Dimensions (inches) | 11.625x8.688x10 |
| Weight Uom | 39.5 lbs. per 100 |
| UNSPSC | 39121310 Utility boxes |
| IGCC | 4440 Utility boxes |
| Brand Name | Steel City |
| Type | Utility Boxes |
| Special Features | Factory provided raised ground screw location. |
| Application | For use with conduit |
| Standard | UL E2969 |
| Number Of Outlet | 1 |
| Size | 4 Inches Length x 2-1/8 Inches Width x 1-7/8 Inches Depth |
| Color | Silver |
| Construction | Drawn |
| Cubic Capacity | 13 Cubic Inches |
| Knockouts | 10 |
