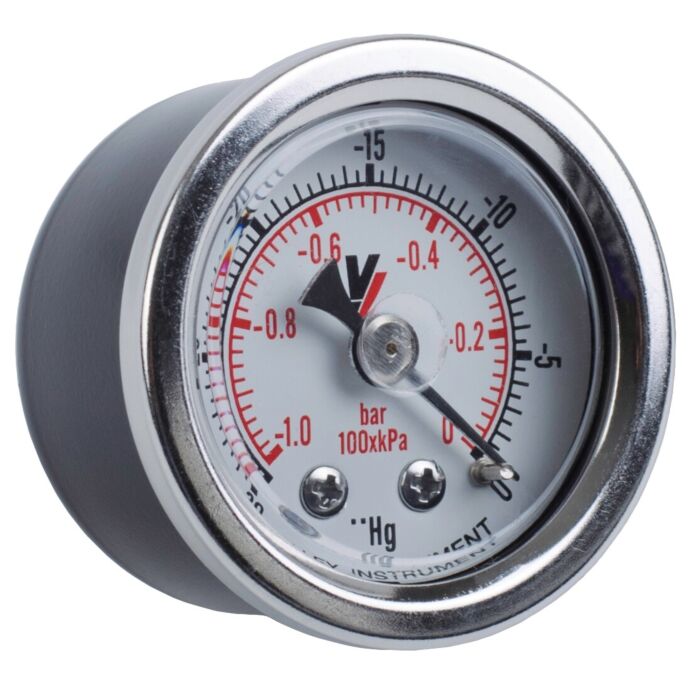

Vacuum Gauge, Dual Scale, 1-1/2 in Dial, -30 to 0 psi, 0.5 Minor Graduation, 5 Major Graduation, Brass Connection, 1/8 in, MNPT, Back Mount, Dry Fill Medium, -40 to 150 Deg F, Steel Case, Copper Alloy Wetted Parts, White Aluminum Dial, Polycarbonate Window, Black Enameled Aluminum Pointer, 2-1-2% Accuracy, Brass Movement, C-Shaped in copper alloy up to 600 psi and Helical in phosphor bronze above 600 psi Bourdon Type
- These gauges are designed for use with gas, oil and water or any medium not corrosive to brass or bronze
| Brand | VALLEY INDUSTRIES |
|---|---|
| Store Location (Lititz, PA) | Aisle 30, Section N1 |
| Package Length (in) | 2.00" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | 0230DSBVAC |
| Type | Dual Scale |
| Dial Size | 1-1/2 in |
| Measuring Range | -30 to 0 psi |
| Minor Graduation | 0.5 |
| Major Graduation | 5 |
| Connection Material | Brass |
| Connection Size | 1/8 in |
| Connection Type | MNPT |
| Mounting Type | Back |
| Fill Medium | Dry |
| Temperature Rating | -40 to 150 Deg F |
| Case Material | Steel |
| Wetted Parts | Copper Alloy |
| Dial | White Aluminum |
| Window | Polycarbonate |
| Pointer | Black Enameled Aluminum |
| Accuracy | 2-1-2% |
| Movement | Brass |
| Bourdon Type | C-Shaped in copper alloy up to 600 psi and Helical in phosphor bronze above 600 psi |
