Ventamatic

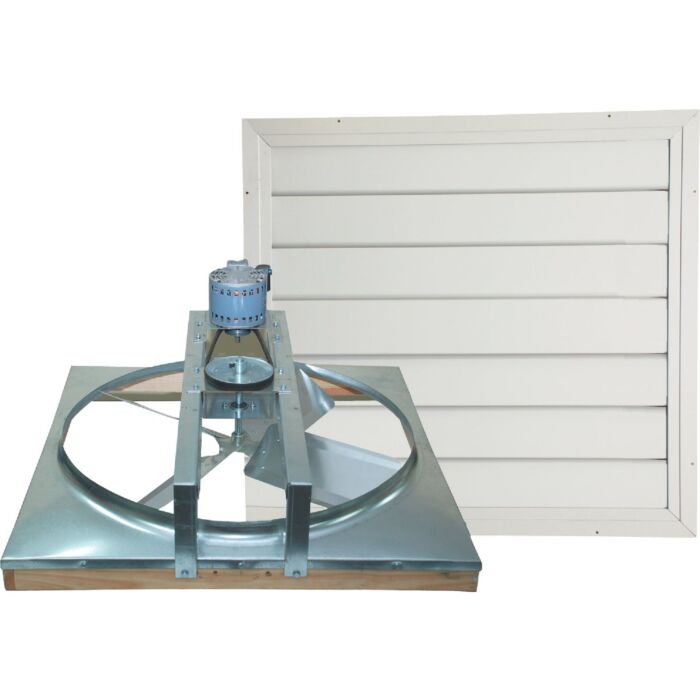

2-Speed Belt Drive Whole House Fan w/ Shutter (White) 30 in.
SKU: CX30BD2
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$489.99
Features
Specifications
This belt-driven whole house fan features a white powder-coat finish shutter and a 2-speed, thermally-protected 1/3 HP Permanent Split Capacitor (PSC) motor. It is equipped with a precision-balanced aluminum fan blade assembly with 4 blades for enhanced air movement, and includes a 2-speed switch and wall plate. Designed for ceiling mount applications, it supports both joist-in or joist-out installation. The fan incorporates dual ball-bearing technology, tough steel motor struts, and a steel venturi for increased durability. The 30" whole house fan suitable for homes between 2000 & 3000 sq. ft. and requires a minimum of 10 to 12 sq. ft. of net free air exhaust vent area. Veins run lengthwise on 30" whole house fan. Center vein is stationary to allow no-cut joint installation.
- Thermally-protected motor
- 2-speed switch and wall plate included
- Supports joist-in or joist-out installation
- Extremely durable
- Covers up to 3000 sq ft
| Brand | Ventamatic |
|---|---|
| UPC | 047242542332 |
| Store Location (Lititz, PA) | Aisle 03, Section D1 |
| Package Length (in) | 44.00" |
| Package Width (in) | 19.75" |
| Package Height (in) | 38.00" |
| Manufacturer Part Number | CX30BD-2SPD |
| Size | 30" |
| Drive Type | Belt Drive |
| For Use With | 2000 to 3000 sq ft |
| Rough Opening | 29-1/4" x 32" |
| Shutter Inside Dimensions | 27-1/4" x 29-3/4" |
| Shutter Outside Dimensions | 31-1/2" x 34" |
| Rate | High 7800/Low 5400 |
| Net Free Area | 10 to 12 sq ft |
