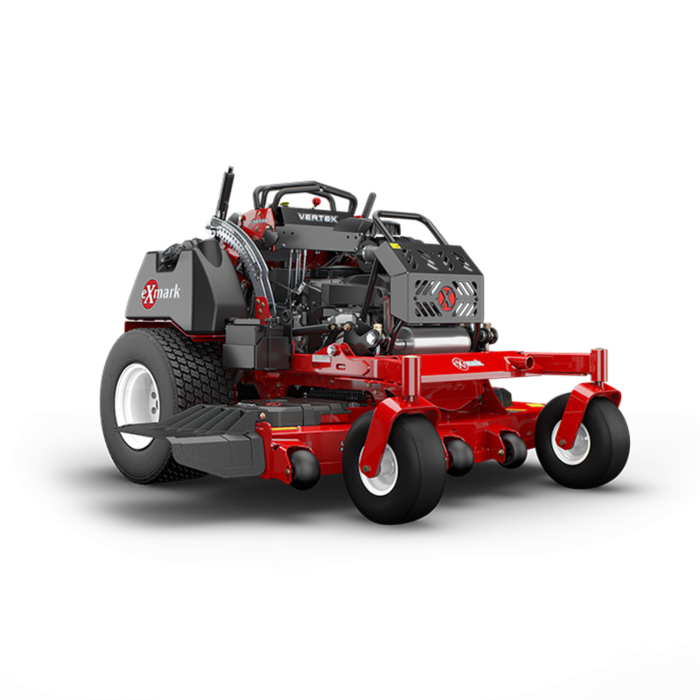

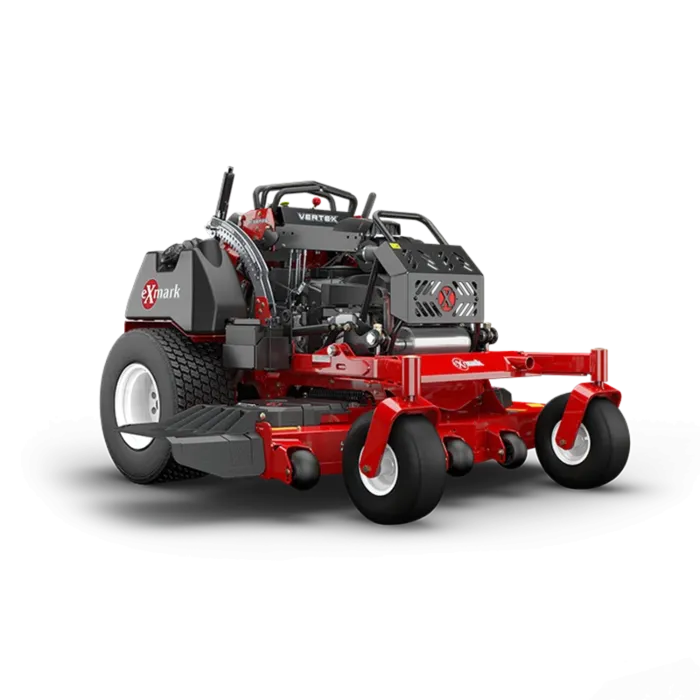

Vertex X-Series 52 in. Stand On Mower
SKU: VXX999EKA52600
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$15,999.99
$15,499.99
Features
Specifications
Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you'll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it's easy to see why the Vertex X-Series is the next generation of stand-on mowers.
- Professional productivity with quality cutting can cut more than 7 acres per hour
- Adjust cut height quickly and easily from 1.5- to 5.0-inches with the single-point height of cut adjustment system
- Delivers maximum runtime with 14-gallons of fuel capacity
- Bolstered operator pad and suspended operator platform located low and centered between the rear wheels optimizes operator comfort
- Runs all season without maintenance
- Includes a magnetic operator pad that’s removable without tools, and an open architecture that enables easy access to the engine and hydro drive system
- Designed with a wide stance for increased stability
- Large 24-inch drive tires provide increased traction and ride quality, with reduced turf compaction
- Heavy-duty 15-inch casters with semi-pneumatic caster tires deliver unmatched stability and durability
| Brand | Exmark |
|---|---|
| UPC | 193308240671 |
| Fuel Capacity | 14 gal |
| Speed | 12 mph |
| Cutting Height Range | 1.5" - 5" |
| Coverage in Acres | 3-5 Acres |
| Acres per Hour | 5.03 Acres |
| UPC | 193308240671 |
| Starter | Electric |
| Steering Control | Twin levers with center fixed reference bar for ease of control forward and reverse |
| Front Caster Tires | 15 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller bearings. |
| Drive Tires | 24 x 9.0-12 Hoosier Grass Master |
| Parking Brake | Lever-actuated internal motor brake |
| Tractor Frame | Welded, heavy-duty 1.5" x 3.0" tubular steel. |
| Blade Spindles | No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft. |
| Cup Holder | Yes |
| Electrical | 12-volt battery with 30-amp alternator. |
| Standard Features | Enhanced Engine Hour Meter |
| Transmission Brand | Hydro-Gear |
| Engine Brand | Kawasaki |
| Engine Model | FX1000V |
| Speed selection | 0–12.0 mph forward, 0–5.0 mph reverse |
| Engine Speed | 3,600 RPM |
| Fuel Type | Gas EFI |
| Drive System | Hydro-Drive |
| Fuel Indicator | Float gauge |
| Deck Style | Floating Deck |
| Width / Cutting Deck | 52" |
| Deck Construction | 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt |
| Blade Tip Speed | Approximately 18,500 fpm |
| Blades | 3 Blades at 18.00" Length |
| Width | 64.79" |
| Height | 48.75" |
| Curb Weight | 1250 |
| Length | 70.45" |
