WATTS

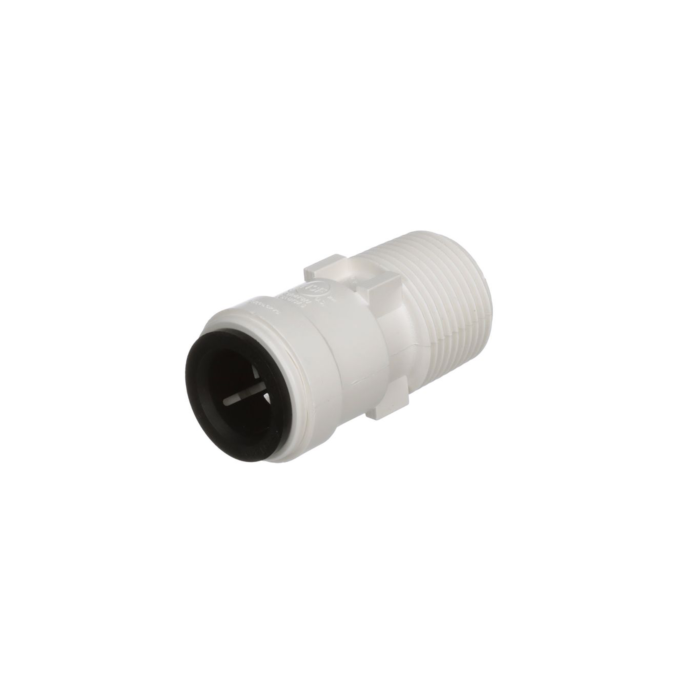

1/2 IN CTS x 3/4 IN NPT Plastic Male Adapter
SKU: MA3412QC | Location: Aisle 06, Section H1
$7.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
Downloads
This 1/2 inch CTS x 3/4 inch NPT AquaLock (TM) plastic male adapter works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
- No tools required for installation or removal
- Works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing
- Rotates under pressure
- Zero-leak connections
- Can be used for hot and cold water applications, including behind the wall applications
- 25-year limited warranty
Brand | WATTS |
---|---|
UPC | 717510147414 |
Store Location (Lititz, PA) | Aisle 06, Section H1 |
Package Length (in) | 4.00" |
Package Width (in) | 3.40" |
Package Height (in) | 0.80" |
Manufacturer Part Number | 3501-1012 |
Brass Insert | No |
Buy American Act Compliant | No |
EAN | 098268299311 |
Finish | Plastic |
Fitting Name | Adapter |
Inlet Connection Size | 1/2 IN |
Inlet Connection Type | Push to connect |
Inlet Material | Polysulfone |
Lead Free | Yes |
Material | Polysulfone |
Maximum Working Pressure-BAR | 17.25 |
Maximum Working Pressure-PSI | 250 |
Maximum Working Temperature-Celsius | 24.00 |
Maximum Working Temperature-Fahrenheit | 75 |
Minimum Temperature - Celsius | 0.56 |
Minimum Temperature-Fahrenheit | 33 |
Outlet Connection Size | 3/4 IN |
Outlet Connection Type | Male Threaded |
Outlet Material | Polysulfone |
Outlet Thread Type | NPT |
Part Number | 0959084 |
Series | Male Adapter 3501 |
Suitable for Gas Service | No |
