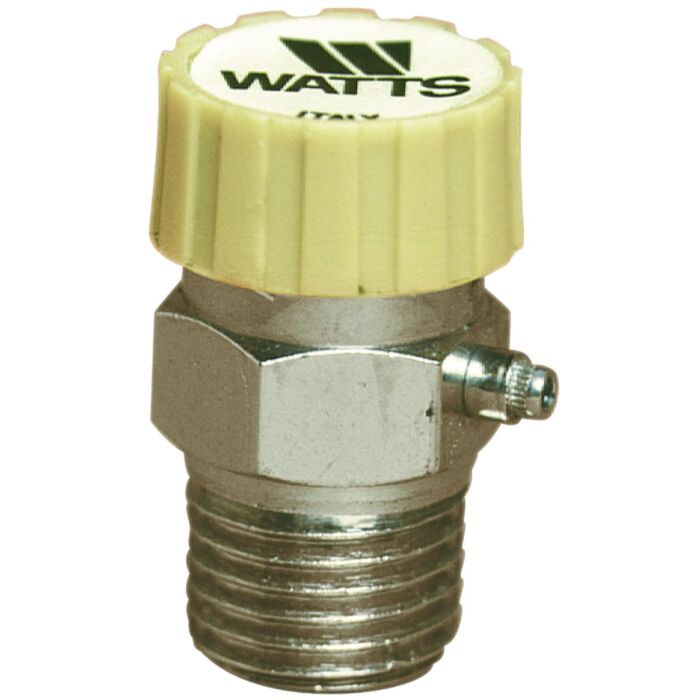

The HAV Series automatic vent valves are utilized in commercial, residential, and industrial hydronic heating systems to provide essential automatic or manual air venting in baseboards, connectors, radiators, and high points in piping. Constructed with a 2-piece, chromed brass body, the valve assembly includes a stainless steel check valve, a copper thermostat, a neoprene O-ring, and a replaceable cartridge, which can be easily maintained or replaced without requiring a system shutdown. This 1/8" size valve is ideal for use with hot water and low-pressure steam systems, with a maximum pressure rating of 125 PSI.
- Easily maintained-replacement cartridge can be installed without system shut down
- Chromed brass body with durable stainless steel check valve
- Quick venting design
- Suitable for use with hot water and low pressure steam systems
| Brand | WATTS |
|---|---|
| UPC | 098268678086 |
| Store Location (Lititz, PA) | Aisle 04, Section D3 |
| Package Length (in) | 3.50" |
| Package Width (in) | 3.00" |
| Package Height (in) | 0.75" |
| Manufacturer Part Number | 0950106 |
| Material | Chromed Brass |
| Pressure Rating | 125 PSI |
| Size | 1/8" |
| Air Venting | Automatic and Manual |
| Body Pattern | Vertical |
| Bottom Tapping | Yes |
| Item Type | Air Vent Inlet |
| Inlet Connection Type | Male Threaded Inlet |
| Temperature Range | 140 to 240 deg F |
| Pipe Plug | No |
| Venting Capacity | 1.06 SCFM at 71 psi |
