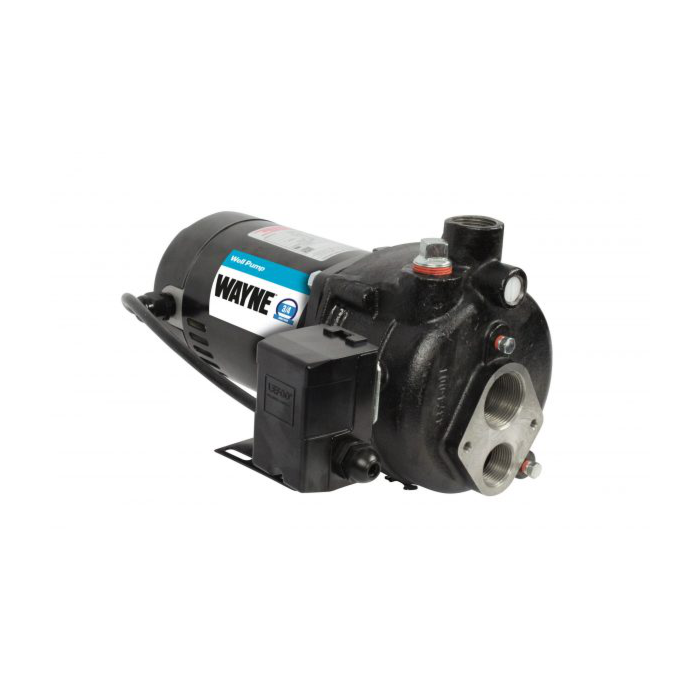

Clean water is important to you, and it’s important to WAYNE. The 1/2 HP CSW50 is proudly assembled in the USA and can safely pump up to 408 Gallons of fresh water per hour at 50 PSI. Engineered for reliable long-lasting use in wells up to 90 feet – warrantied for 3 years.
- Dual voltage (120/240 V) high efficiency square flange motor (factory set for 240 V)
Brand | Wayne |
---|---|
UPC | 054128413020 |
Store Location (Lititz, PA) | Aisle 08, Section I6 |
Package Length (in) | 19.80" |
Package Width (in) | 11.00" |
Package Height (in) | 8.80" |
Manufacturer Part Number | 56942-WYN2 |
Horse Power | 1/2 HP |
Warranty | 3 Year |
Motor Type | 120/240V Split Phase Oil-Filled |
Amperage - FEI | 11/5.5 |
Primary GPH - MAX FLOW | 900 |
GMP-MAX Flow | 15 |
Switch Type | 30/50 Pressure Switch |
Cord Length | Wire In Field |
NPT Discharge | 1 in. |
