Lincoln Electric

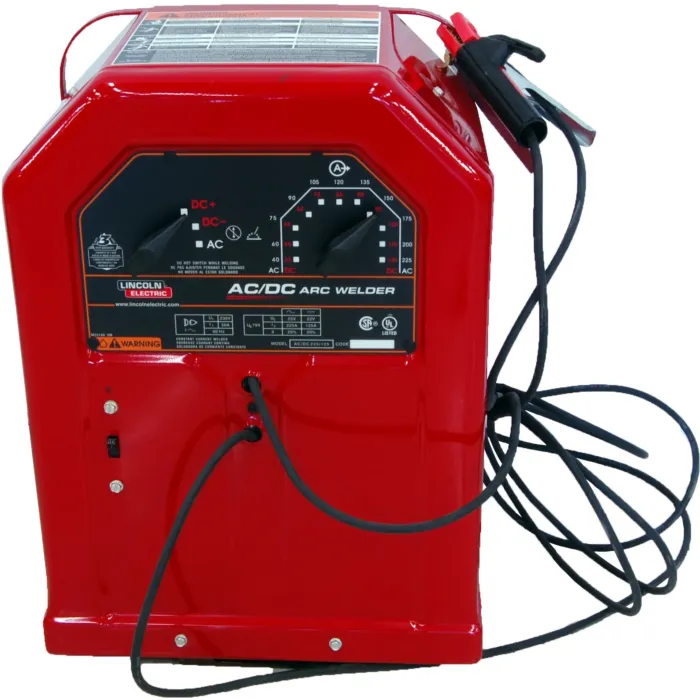

240 VAC 125 A 225 A Stick Welder

SKU: K1297
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 4 in stock
DISCONTINUED ITEM
This product must be picked up in-store.
Features chevron-down chevron-up
The AC/DC 225/125 is the same proven design as the renowned AC-225 arc welder, but adds the smoother, more stable DC welding arc. This stick welder is ideal for farm, shop and home use where improved arc welding performance is desired.
  • Easy to operate - With front mounted AC/DC polarity switch
  • Smooth arc - Makes it easy to weld with different electrodes
  • 125 A DC output - Enough for most 1/8 in (3.2 mm) electrodes
  • 225 A AC output - Enough for 3/16 in (4.8 mm) diameter general purpose mild steel electrodes
  • NEMA rated, UL listed and CSA approved
Specifications chevron-down chevron-up
Brand Lincoln Electric
UPC 015082012971
Store Location (Lititz, PA) Aisle 05, Section M4
Manufacturer Part Number K1297
Input Voltage 240 VAC
Input Current 125 A
Output Current 225 A
Phase 1
Duty Cycle 225 A @ 25 V, 20%
Plug Type 6-50P
Overall Length 12 in
Overall Width 17.25 in
Overall Depth 24 in
