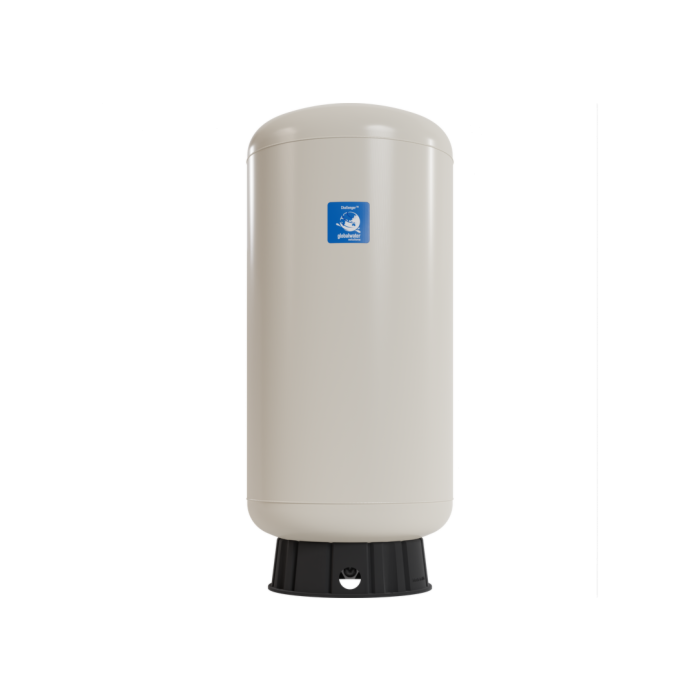

Challenger™ Well Pressure Tank (Almond) 119 gal
SKU: 450LV
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1,199.99
Features
Specifications
Downloads
The Challenger™ 450-liter / 118.88-gallon vertical pressure tank provides exceptional performance for large systems requiring high capacity. Its patented CAD-2 diaphragm assembly ensures efficient air and water separation, while the chlorine-resistant butyl diaphragm and copolymer polypropylene liner deliver durability and safety. Pre-charged to 1.4 bar / 20 psi and fitted with a 1¼" BSPP connection, this tank is maintenance-free and highly reliable. The carbon steel shell, finished with dual-layer polyurethane paint, offers excellent resistance to corrosion, making it ideal for thermal expansion, heating, and booster systems.
- Patented stainless steel water connection
- Two-part polyurethane, epoxy-primed paint finish
- Leak-free air valve cap, sealed and closed cell foam
- Replaceable tank base
- Maintenance free
- Carbon steel shell
- Patented CAD-2 diaphragm technology
- Comprehensive testing
| Brand | Global Water Solutions |
|---|---|
| Date Added | Jan 18, 2026 |
| Store Location (Lititz, PA) | In Warehouse, see sales associate |
| Package Length (in) | 24.00" |
| Package Width (in) | 24.00" |
| Package Height (in) | 69.00" |
| Manufacturer Part Number | 450LV |
| Temp Max | 90°C / 194°F |
| Pressure Pre-charge | 1.4 bar / 20 psi |
| Nominal Volume | 450 L / 118.88 gal |
| Connection | 1.25" BSPP (F) |
| Color | Almond |
| Pressure Max | 10 bar / 150 psi |
| Diameter | 66.1 cm / 26" |
