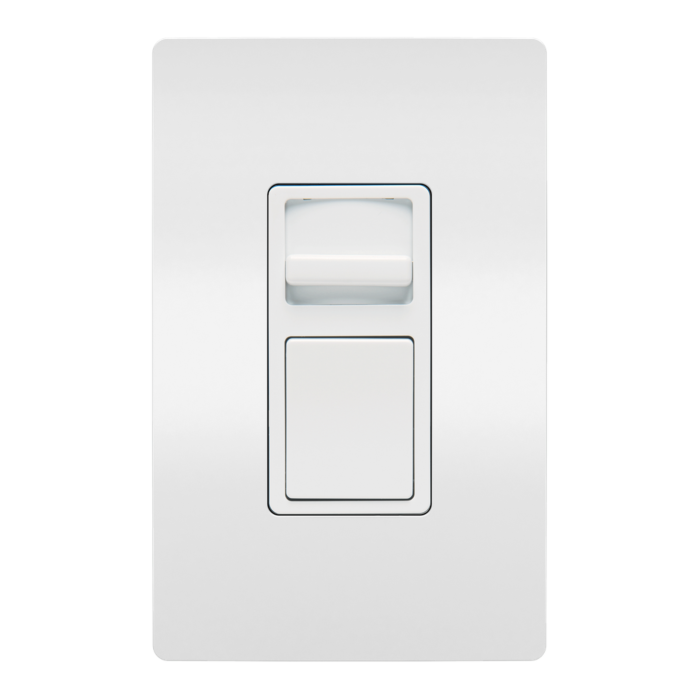

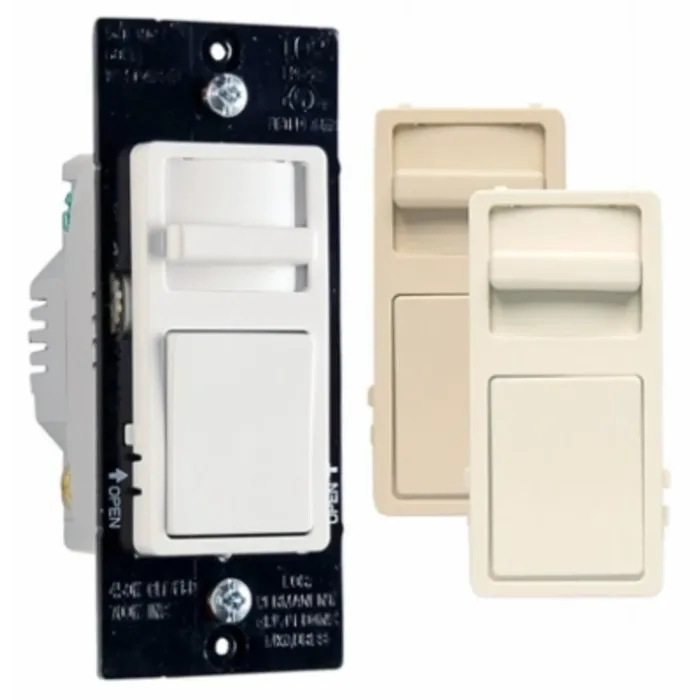

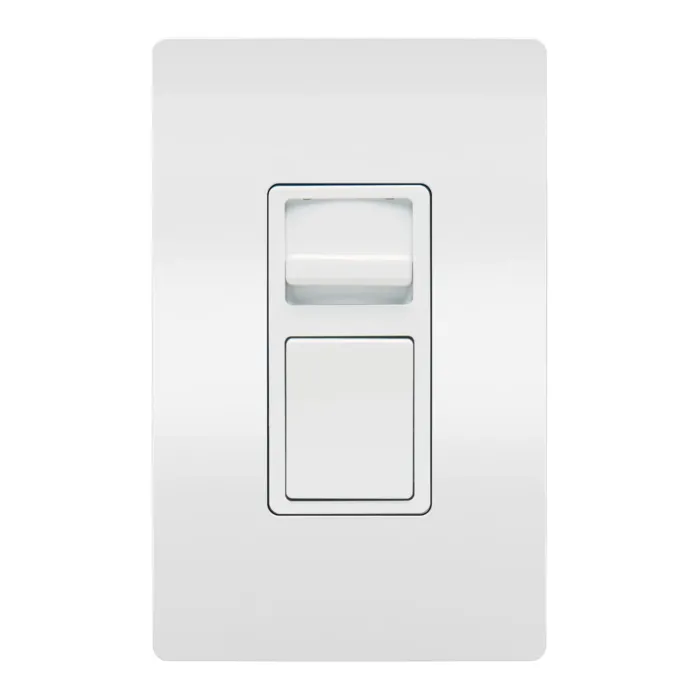

Wide Slide Series CFL/LED/Incandescent Single Pole/3-Way Paddle Slide Dimmer, Preset, Tri-Color
SKU: WSCL453PTC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$37.99
Features
Specifications
Downloads
Works with select dimmable CFL/LED or incandescent lighting loads and features a sleek, sculpted ergonomic design for smooth, easy operation and precise control.
- Convenient Operation - Combines ON/OFF Decorator style switch with separate slider for dimming control
- Constant memory returns lights to previous level after a power failure
- Sleek, ergonomic design that matches well with other decorator products
- Higher ratings
- Single pole and 3-way operation
- Screw-pressure-plate back wire terminals to save time, space and money
- Wattage Rating: 450 W (LED & CFL), 700 W (Incandescent)
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007039351 |
| Store Location (Lititz, PA) | Aisle 09, Section D2 |
| Package Length (in) | 2.50" |
| Package Width (in) | 3.80" |
| Package Height (in) | 3.80" |
| Manufacturer Part Number | WSCL453PTCCCV4 |
| Depth | 1.25 in |
| Height | 4.25 in |
| Color | Ivory,Light Almond,White |
| Width | 1.75 in |
| Finish | Matte |
| Country of Origin | China |
| Material | Steel,Thermoplastic |
| Product Line | Pass & Seymour |
| Preset | Yes |
| Load Type | Incandescent |
| Voltage | 120 VAC |
| Switch Type | Slider |
| Indoor/Outdoor | Indoor |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall Box |
| Number of Switches | 1.0 |
| Special Features | Preset |
| Wire Size | #14 - #10 AWG |
| Product Series | Decorator |
| Requires Neutral Wire | No |
| Features | Low-End Trim (Dim Range) |
| Load Rating | 120V 700W (Incandescent) |
| Application Sector | Residential |
| Number of Poles | Single Pole 3-Way |
| Dimming Compatibility | Forward Phase |
| Wire Connection Type | Screw Terminals |
| Warranty Type | Limited Lifetime Warranty |
