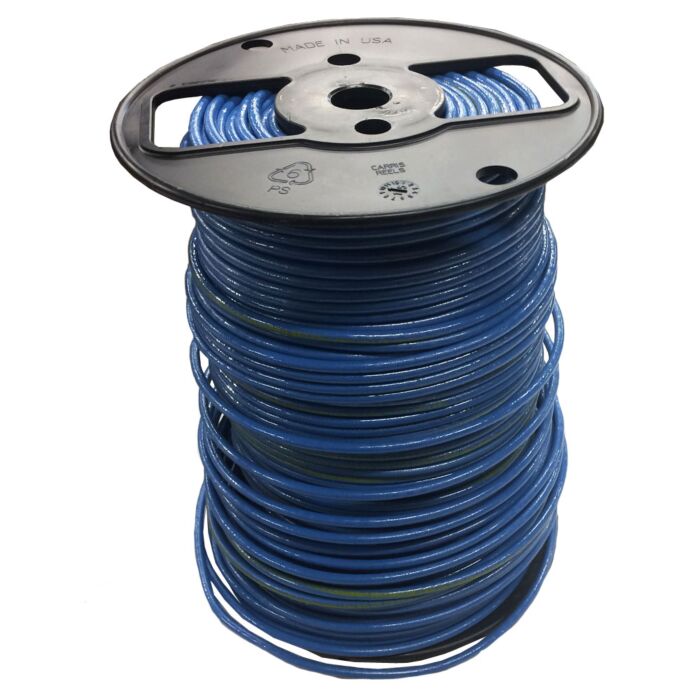

#10 THHN Solid Electrical Wire Blue
SKU: 10SB
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1.42
/ FT
/ FT
- Buy 500 FT for $0.43 each and save 70%
Features
Specifications
Type THHN 90deg. Building wire. Is a small diameter, general purpose 600 Volt building wire to be used as power, lighting and control wiring. The thin, high-grade PVC insulation and smooth, tough, nylon jacket permit the easy use of more wires in a given size conduit. The wire is dry, machine tool wire and is gasoline and oil-resistant 75deg.C. Also available on 2500 ft reels. Available in multiple colors. Thickness in Mils Insulation 20 Jacket 4 Approximate O.D. .16 in Ampacity 30 Amp. Approximate Weight 18.5 lb per 500 ft spool.
| Brand | Southwire |
|---|---|
| Store Location (Lititz, PA) | Aisle 06, Section D6 |
| Package Length (in) | 8.20" |
| Package Width (in) | 6.20" |
| Package Height (in) | 6.20" |
| Voltage Rating | 600 V |
| Current Rating | 30 A |
| Number of Conductors | 1 |
| Conductor Type | THHN |
| Conductor Size | 10 AWG |
| Conductor Material | Copper |
| Outside Diameter | 16 in |
| Length | 500 ft |
| Insulation Thickness | 19 mil |
| Solid/Stranded | Solid |
| Insulation Material | High Grade PVC |
| Jacket Material | Nylon |
| Jacket Color | Blue |
| Temperature Rating | 75 deg C |
