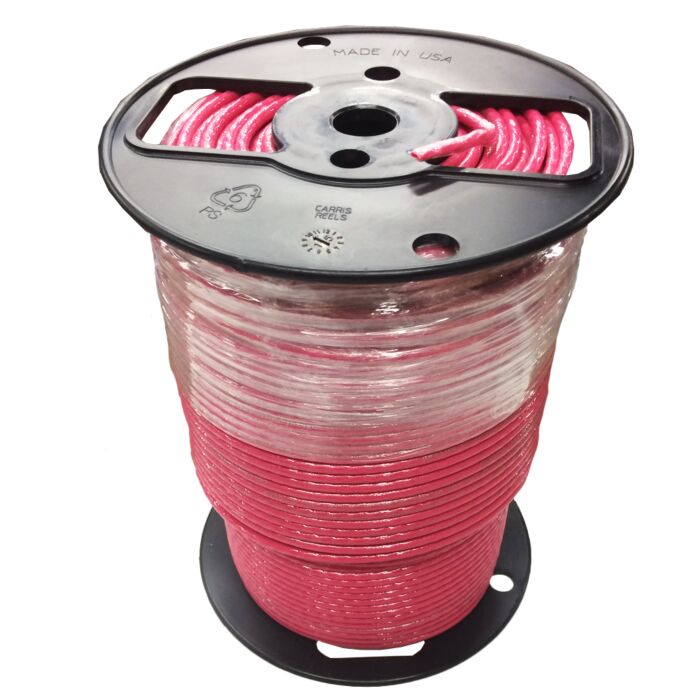

#10 THHN Stranded Electrical Wire Red
SKU: 10STR
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1.49
/ FT
/ FT
- Buy 500 FT for $0.45 each and save 70%
Features
Specifications
Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.
- THWN- Wet locations not to exceed 75 C or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
- Voltage for all applications is 600 volts.
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70
| Brand | Southwire |
|---|---|
| Store Location (Lititz, PA) | Aisle 06, Section D5 |
| Package Length (in) | 8.20" |
| Package Width (in) | 6.00" |
| Package Height (in) | 6.00" |
| Manufacturer Part Number | 22975757 |
| Voltage Rating | 600 V |
| Current Rating | 30 A |
| Number of Conductors | 1 |
| Conductor Type | THHN |
| Conductor Size | 10 AWG |
| Conductor Material | Copper |
| Outside Diameter | 16 in |
| Length | 500 ft |
| Insulation Thickness | 19 mil |
| Solid/Stranded | Stranded |
| Insulation Material | High Grade PVC |
| Jacket Material | Nylon |
| Jacket Color | Red |
| Temperature Rating | 75 deg C |
