Forney

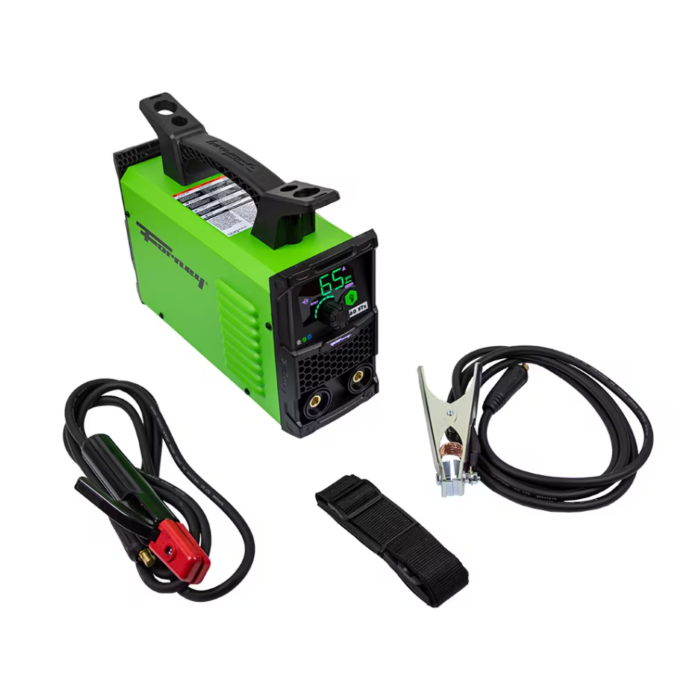

X-Series 160 STx TIG Welder

SKU: F381
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 4 in stock
Features chevron-down chevron-up
The Forney® 160 STx is a dual-voltage stick and DC TIG welder that pairs serious 160 amp performance with a next-generation, large bright display and simple one-knob control. Run it on 120V household power for lighter jobs, or step up to 240V to weld thicker material up to 3/8 in. in a single pass, with adjustable arc force and 6010‑capable output that lets you tackle demanding open‑root work. Backed by a 3-year warranty and Forney® Industries’ 90+ years of welding experience, this dual-voltage stick and TIG welder is built for contractors, farmers, and serious DIYers who need a portable machine that still feels like a pro-grade stick welder.
  • Expert-Tech® support gives you a direct line to Forney’s technical team for setup, troubleshooting, and parts; all from real welders based in Colorado, USA
  • 3-year warranty delivers long-term assurance so you can rely on the 160 STx for ongoing repair, maintenance, and fabrication work
  • Bright passive LCD with large readout delivers a next-generation panel that makes it easy to see your amperage and settings in dim shops or bright outdoor light
  • 6010-capable stick output delivers the digging arc and high open-circuit voltage needed to run E6010 electrodes for open-root passes and work on dirty or rusty materials
  • Adjustable arc force control delivers the ability to fine-tune the arc to match different rods and techniques
  • Dual input voltage (120V / 240V) delivers flexibility so you can plug into household power for small jobs or step up to 240V in the shop or field for full 160 amp output
  • Compact, lightweight inverter with handle and carry strap delivers portability so you can carry the welder, wrap the leads, and bring it directly to the work
  • Lift start TIG capability (DC TIG) delivers more precise heat control on thin metal so you can produce cleaner, more controlled weld beads when appearance matters
  • Generator-capable design delivers remote welding capability so you can run from a 4,000 W (120V) or 10,000 W (240V) generator with no low-idle
  • CSA certified to meet strict safety and performance standards ensuring reliability and your safety in any work environment
  • One-knob interface with Expert-Set Hot Start delivers easy amperage control and reliable arc starts
Specifications chevron-down chevron-up
Brand Forney
Date Added Jul 29, 2026
Store Location (Lititz, PA) Aisle 05, Section N3
Package Length (in) 10.40"
Package Width (in) 5.00"
Package Height (in) 13.80"
Manufacturer Part Number 381
Input voltage 120 VAC / 240 VAC, 50–60 Hz, single phase
Input current 120V 13.7 A; 240V 16 A max
Duty cycle (120V) Stick 30% at 80 A; TIG 30% at 85 A
Duty cycle (240V) Stick 25% at 160 A; TIG 30% at 160 A
Output current (120V) Stick 15–80 A; TIG 15–85 A
Output current (240V) Stick 15–160 A; TIG 15–160 A
Processes Stick (Shielded Metal Arc Welding, SMAW) and DC TIG (Gas Tungsten Arc Welding, GTAW)
Process features Adjustable arc force controls and Expert‑Set Hot Start
Electrode/ground connections 25-series Dinse
Single-pass plate thickness range 120V 24 ga–1/4 in; 240V 24 ga–3/8 in.
Electrode diameter 120V up to 1/8 in; 240V up to 5/32 in. electrodes
Tungsten diameter (TIG) 3/32 in
Open-circuit voltage 80 V
Power supply type Inverter
Generator requirements 120V – 4,000 W; 240V – 10,000 W continuous output, no low-idle, 5% THD max
Input power cable length 7 ft
Ground clamp cable length 8 ft copper
Electrode holder cable length 8 ft copper
IP rating IP21S
Machine weight 10.5 lb
Certification CSA listed
Warranty 3 years
