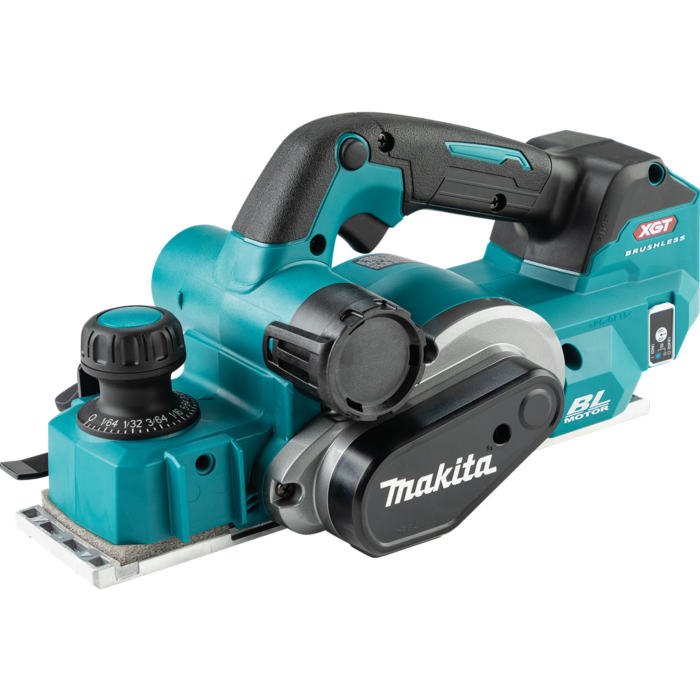

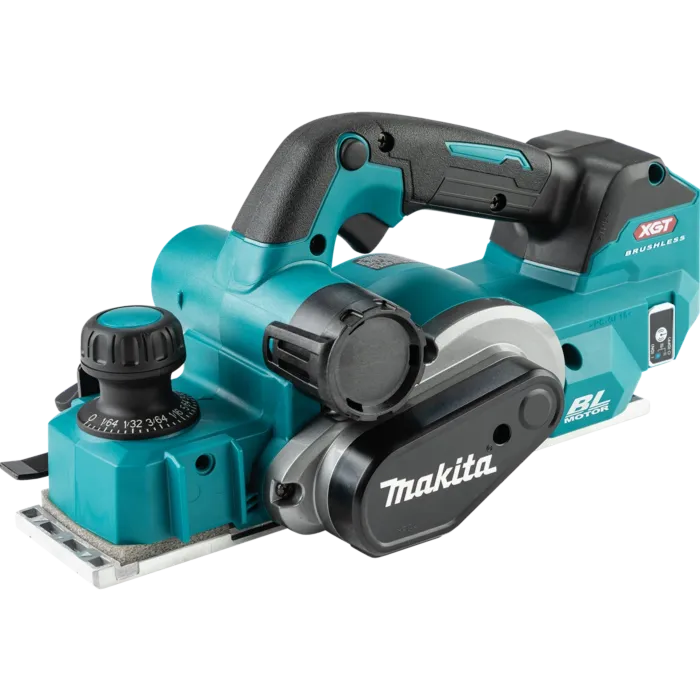

The 40V max XGT® Brushless 3-1/4" Planer is a powerful cordless solution for professional door/window installers, carpenters, and contractors. Engineered for fast stock removal, it delivers 15,000 RPM and can plane up to 311 feet (at 1/16" depth) per charge using a 4.0Ah battery. Key features include a long-lasting Makita brushless motor, a two-blade cutter head with double-edge carbide blades for a smooth finish, and a precision-machined aluminum base. It is AWS® Capable for wireless dust extractor communication and includes a spring-loaded stand, an electric brake, and a precise click-depth adjustment (0" to 5/32"). The XGT® system provides the power and durability needed to transition fully to a cordless job site.
Includes:
(1) Socket Wrench
(1) Guide Rule
(1) Depth Guide
(1) 3-1/4" Planer Blade, 2/pk
(1) Blade Gauge
- Powerful brushless motor delivers 15,000 RPM for faster stock removal
- Delivers up to 38% faster planing speed
- XPT™ is engineered to provide increased dust and water resistance
- Capable of planing up to 311 feet at 1/16" depth
- Planes up to 3-1/4" wide and 5/32" deep in a single pass
- Auto-start wireless System (AWS®) utilizes Bluetooth technology for wireless on-off communication between the tool and dust extractor (sold separately)
- 2-blade cutter head with double edge carbide blades for added performance and smooth finish
- Adjustment knob with easy-to-read scale with settings from 0" to 5/32" for precise depth adjustment
- Chip ejection can be directed to either side of the tool for convenience
- Spring-loaded stand elevates the base to protect the blades and workpiece
- Precision-machined aluminum base for planing accuracy; features 3 chamfering groove options for convenience
- Ergonomically centered balance with rubberized soft grips on the front and rear handles for increased comfort on the job
- Easy blade setting system for fast blade installation
- Electric brake for maximum productivity
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- 3-year limited warranty on tool, battery, and charger
- Only use genuine Makita® Batteries and Chargers
| Brand | Makita |
|---|---|
| Date Added | Dec 21, 2025 |
| UPC | 088381762250 |
| Store Location (Lititz, PA) | Aisle 25, Section N1 |
| Package Length (in) | 15.79" |
| Package Width (in) | 8.54" |
| Package Height (in) | 7.87" |
| Manufacturer Part Number | GPK01Z |
| Country of Origin | China |
| No Load Speed | 15,000 RPM |
| Planing Width | 3-1/4" |
| Planing Depth | 5/32" |
| Overall Length | 13-1/8" |
| Net Weight | 6.5 lb |
| Battery | 40V Max XGT® Lithium-Ion |
| Shipping Weight | 10.17 lb |
| Max. no load speed | 15,000 RPM |
| Power Type | Cordless |
| Motor Type | Brushless |
| Automatic-start Wireless System (AWS®) | Capable (transmitter sold separately) |
| UPC Code | 088381-762250 |
| Packaged Depth | 8.54" |
| Packaged Height | 7.87" |
| Packaged Width | 15.79" |
