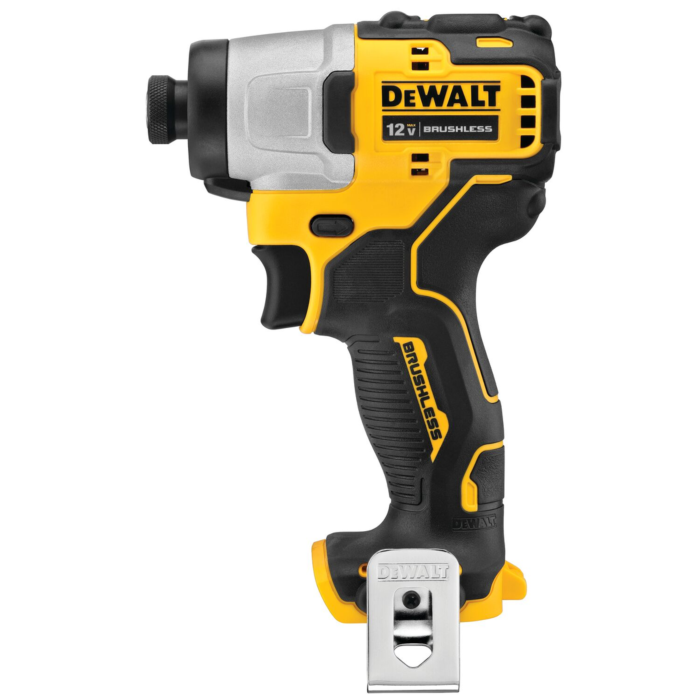

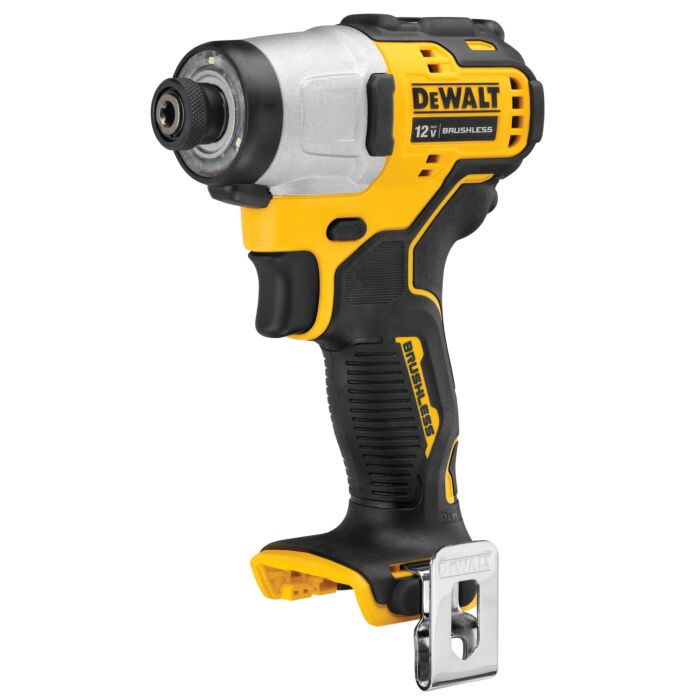

Complete precision fastening applications in tight spaces without sacrificing power with the XTREME 12V MAX Impact Driver. At only 5.05 in. long (front to back) with up to 1,450 in-lbs. of torque, this impact driver is designed COMPACT AND PERFORMANCE PACKED. Battery & Charger Sold Separately
- 3 mode settings including the Precision Drive feature for accuracy
- 52% more torque
- 19% shorter
- Brushless motor for maximum runtime and durability
- 1/4 in. quick release drop and load hex that accepts 1 in. bit tips
- 3 LEDs on nose for work surface illumination
- Lightweight at 1.75 lbs. (tool only)
- (1) Belt clip | (1) DCF801B - 12V MAX* Brushless 1/4 in. impact driver
- Yes
- ** DCF801 using DCB122 2.0Ah battery vs. DCF815 using DCB120 1.3Ah battery (sold separately). | * Maximum initial battery voltage (measured without a workload) is 12 volts. Nominal voltage is 10.8.
| Brand | DEWALT |
|---|---|
| UPC | 885911631013 |
| Store Location (Lititz, PA) | Aisle 23, Section N3 |
| Package Length (in) | 9.00" |
| Package Width (in) | 3.13" |
| Package Height (in) | 3.13" |
| Manufacturer Part Number | DCF801B |
| Country of Origin | China |
| Height | 5.600 in |
| Length | 9.000 in |
| Width | 3.125 in |
| Weight | 2.145 lbs |
| Product Type | IMPACT DRIVER DRILL |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 12 V V |
| Battery Type | 12V MAX Lithium Ion |
| Net Lit-Ion Y/N | No |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Warranty | 3LW1YS90D |
| App Compatibility | No |
| Bevel Capacity | 57 |
| Bluetooth Compatibility | No |
| Case Type | N/A (no case) |
| Chuck Size | 1/4 in |
| Drive Size | 1/4 in |
| Impacts / Blows / Blasts Per Min | 3600 |
| Integrated Work Light | Yes |
| Maximum Chuck Size | 1/4-in |
| Maximum Speed | 2850 RPM Rpm |
| Maximum Torque | 1450 In-Lbs |
| Right Angle | No |
| Tool Power Output | 1450 in-lbs |
| Variable Speed | Yes |
| Wifi Compatibility | No |
| Works With Android | No |
| Works With Ios | No |
