Merrill
Any-Flow Frost-Proof Yard Hydrant - 1 in. x 3/4 in.
SKU: AF7503
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$199.99
$179.99
Features
Specifications

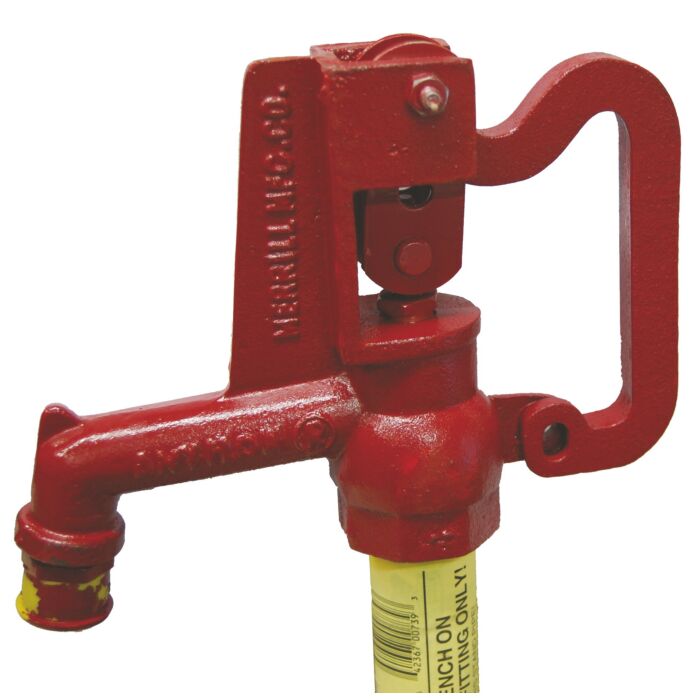

The Merrill Any Flow® Yard Hydrant gives year-round water service to customers in all weather conditions. The unique design of the Any Flow's plunger assembly increases the plunger's life expectancy by 200% over others in the industry. The use of a pivot connector and nuts enables easy adjustments for years as opposed to set screws that quickly rust into place. Full lever control allows the Any Flow® to run at a trickle to full flow and everywhere in between by just moving the handle. Designed with swivel parts, the Any Flow® can have its internal parts removed and replaced all without a need to dig up the hydrant. The use of a drain hole ensures that water drains from the standpipe allowing the Any Flow to be your year-round water solution in all climates.
- Steel draw straps for reduced wear, eliminating side pull on the operating rod
- Stainless steel operating rod adds years to operating life
- Heavy-duty hose adapter is threaded for standard 3/4" hose coupling
- Extra thick-walled head casting is built to withstand years of use
- Pivot connector with two nuts is easily adjusted for years
- No exposed steel threads on pipe means no rust
- Extra thick-walled valve body increases durability for years of use
- Longest operating life available in the industry by over 200%
- Longest-lasting seals on the market, surpassing the 1 million cycle test
- 3/8L high durometer beveled bibb washer assures a positive water shutoff and increases plunger life
- Stainless steel spring built into plunger integrates automatic plunger adjustments
- Swivel parts insures removal of plunger and replacements of internal parts without digging up the hydrant
| Brand | Merrill |
|---|---|
| UPC | 642367418083 |
| Store Location (Lititz, PA) | Aisle 07 End Cap |
| Package Length (in) | 2.80" |
| Package Width (in) | 9.50" |
| Package Height (in) | 69.50" |
| Manufacturer Part Number | AFNL7503 |
| Type | Hi-Capacity Frost-Proof |
| Series | Any Flow® |
| Nominal Size | 1 x 3/4" |
| Bury Depth | 3 ft |
| Connection Type | NPT x Hose Thread |
| Overall Length | 69-1/2" |
| Rod Diameter | 7/16" |
| Shut-Off Type | Lever Handle |
| Rod Material | Stainless Steel |
