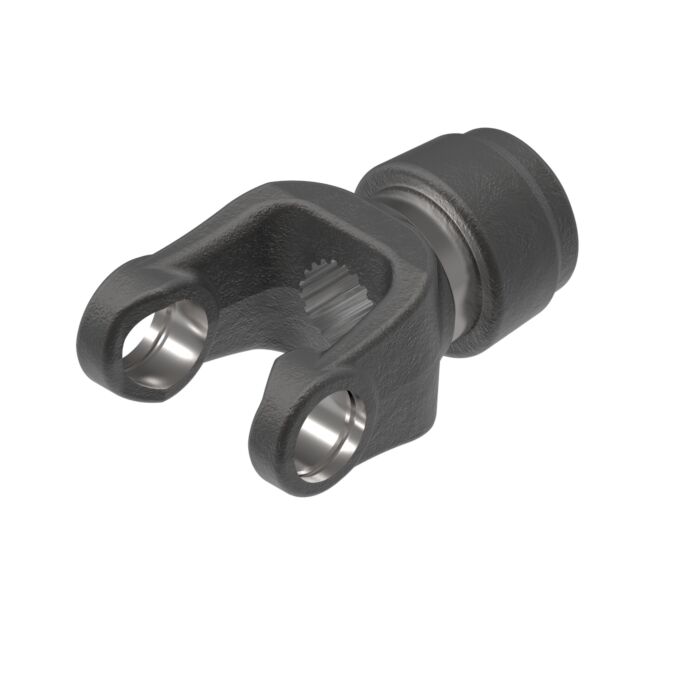

PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8" 6-spline (type 1), 1 3/8" 21-spline (type 2), and 1 3/4" 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2" 8-spline and 1 3/4" 6-spline options are available. Lawn & Turf tractor yokes are offered in 1" 10-spline and 1" 15-spline.
Brand | Weasler |
---|---|
UPC | 728357100128 |
Store Location (Lititz, PA) | Aisle 08, Section W2 |
Package Length (in) | 3.40" |
Package Width (in) | 2.20" |
Package Height (in) | 6.20" |
Manufacturer Part Number | 101-4421 |
Length | 5.5 inch |
Height | 4.5 inch |
Width | 2.69 inch |
Weight | 4.86 lb |
Series | 44 |
Bore | 1.375" |
Bore Description | 1 3/8-21 SPLINE |
Connection 1 Description | SAFETY SLIDE LOCK |
Bearing Diameter | 1.311" |
Bearing Span | 4.016" |
Horsepower at 540 RPM | 103 hp |
Horsepower at 1000 RPM | 158 hp |
