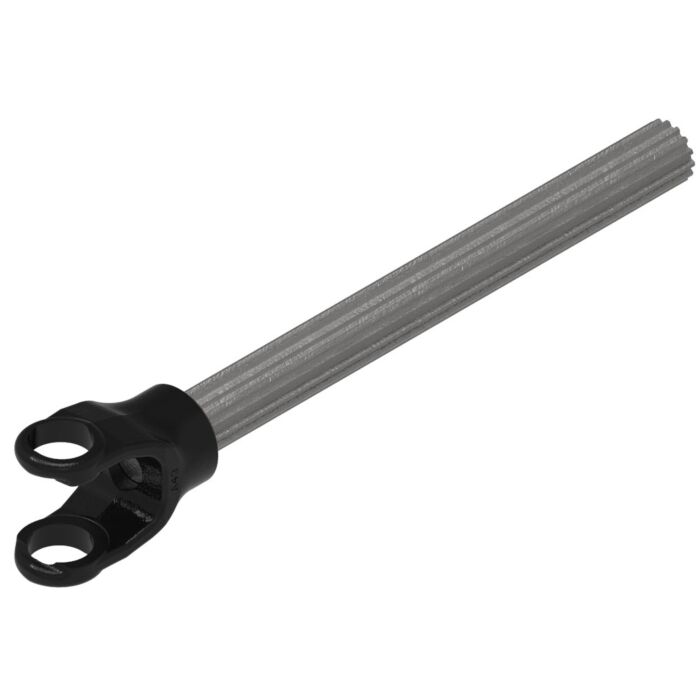

6 series yoke and shaft, 1-15 spline
SKU: 10000610
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$167.88
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357106564 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 14.60" |
| Package Width (in) | 3.00" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | 10000610 |
| Height | 2.5 inch |
| Width | 2 inch |
| Weight | 3 lb |
| Series | 6 |
| Connection 1 Description | YOKE ARMS |
| Bore | 1" |
| Bore 2 Description | 1-15 SPLINE |
| Connection 2 Description | TELESCOPING |
| Bearing Diameter | 0.969" |
| Bearing Span | 2.295" |
| Horsepower at 540 RPM | 19 hp |
| Horsepower at 1000 RPM | 29 hp |
