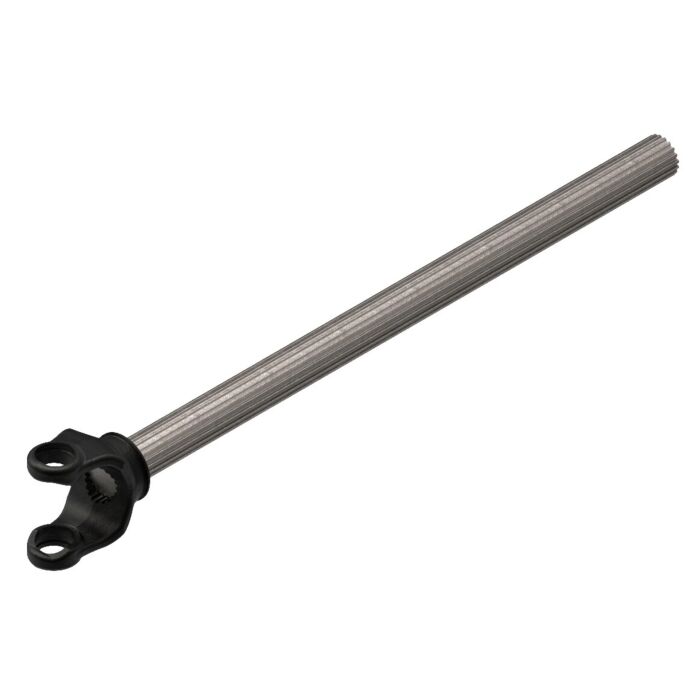

55 series yoke and shaft, 1 11/16-20 spline
SKU: 10015548
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$381.08
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357108445 |
| Store Location (Lititz, PA) | Aisle 07, Section W1 |
| Package Length (in) | 5.00" |
| Package Width (in) | 34.00" |
| Package Height (in) | 3.13" |
| Manufacturer Part Number | 10015548 |
| Height | 5.125 inch |
| Width | 2.63 inch |
| Weight | 23.18 lb |
| Series | 55 |
| Connection 1 Description | YOKE ARMS |
| Bore | 1.75" |
| Bore Description | 1 11/16-20 SPLINE |
| Connection 2 Description | TELESCOPING |
| Bearing Diameter | 1.531" |
| Bearing Span | 4.303" |
| Horsepower at 540 RPM | 137 hp |
| Horsepower at 1000 RPM | 211 hp |
