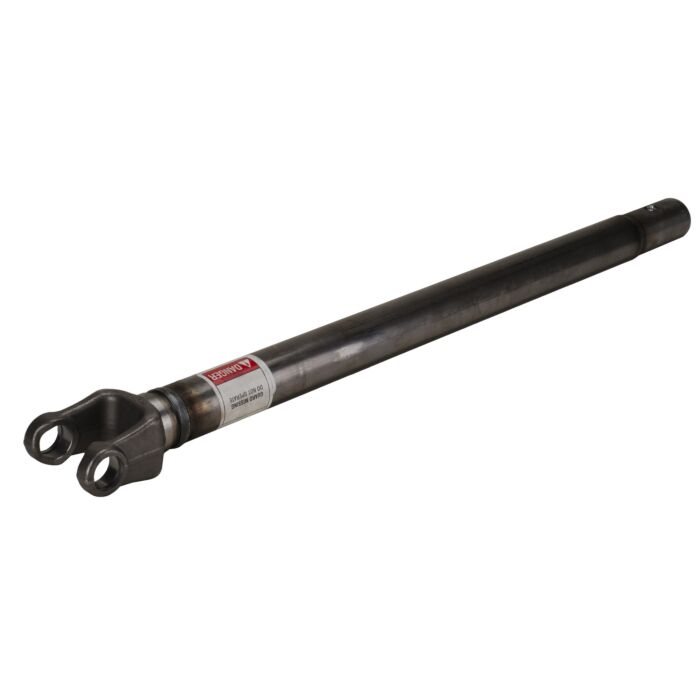

35 series yoke and tube, 1 3/16 square
SKU: 11003548
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$243.08
Features
Specifications
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
| Brand | Weasler |
|---|---|
| UPC | 728357102917 |
| Store Location (Lititz, PA) | Aisle 07, Section W1 |
| Package Length (in) | 3.75" |
| Package Width (in) | 35.50" |
| Package Height (in) | 2.50" |
| Manufacturer Part Number | 11003548 |
| Height | 4 inch |
| Width | 2.3 inch |
| Weight | 12.06 lb |
| Series | 35 |
| Bore 1 Description | Minus End Yoke |
| Connection 1 Description | YOKE ARMS |
| Bore | 1.188" |
| Bore 2 Description | 1 3/16 SQUARE |
| Connection 2 Description | TELESCOPING |
| Bearing Diameter | 1.252" |
| Bearing Span | 3.209" |
| Horsepower at 540 RPM | 70 hp |
| Horsepower at 1000 RPM | 108 hp |
