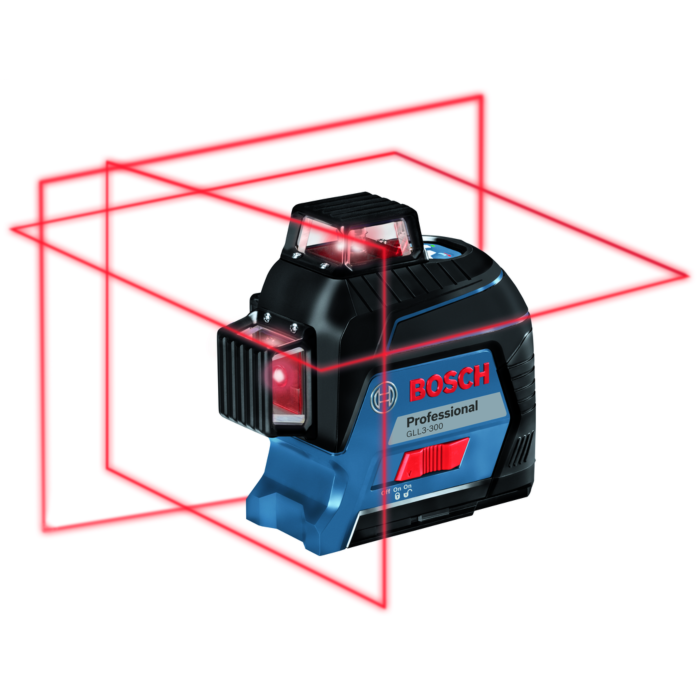

The Bosch GLL3-300 360° Three-Plane Leveling and Alignment-Line Laser features an all-in-one level and alignment solution. This leveling laser provides fast one-spot job setup. It allows users to line up level, align, square and plumb with one setup point by generating three 360° laser planes – one horizontal and two vertical. Featuring an upgraded diode with a brighter beam than previous generation lasers, the GLL3-300 has a visible range of up to 200 Ft. diameter. The leveling laser features pulse mode, extending the working range up to 300 Ft. diameter and/or in bright lighting, using the optional LR8 receiver or LR 6 receiver. The VisiMax™ Technology drives maximum line visibility, and the robust over-molded construction withstand rainy or dusty jobsite conditions. The included BM1 positioning device clips to multiple surfaces and provides quick and easy setup.
- Complete level and alignment laser – quickly arranges and squares room layout with three chalk lines in 360° laser planes, one horizontal and two vertical
- Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life
- Upgraded diode with a brighter beam – delivers a visible range of up to 200 Ft. diameter
- Pulse mode – extends the working range up to 300 Ft. diameter and/or in bright lighting, using an optional LR8 or LR 6 receiver
- BM1 positioning device – clips to multiple surfaces, stands on floor with retractable feet and mounts to drywall or wood with screws for quick and easy setup
- Smart Pendulum System – self levels and indicates out-of-level condition up to ±4°
- Manual mode – locks lines for use at any angle
- Robust over-molded construction – IP54 ensures splash water/dust protection for years of dependable operation
- Accurate to Within 0.25 in per 100 ft
Brand | Bosch |
---|---|
UPC | 000346614138 |
Store Location (Lititz, PA) | Aisle 25, Section I5 |
Package Length (in) | 18.60" |
Package Width (in) | 5.60" |
Package Height (in) | 11.40" |
Manufacturer Part Number | GLL3-300 |
Accuracy | Up to ±3/32-in @ 30-ft |
Battery Size | AA |
Battery Voltage | 1.5 |
Case Included | Yes |
Color / Finish | Blue with overmold |
Country of Origin | China |
Height (in) | 5.6 |
Indoor / Outdoor | Indoor |
Laser Level Functions | Plumb & Level & Square |
Laser Level Mounting Method | Wall or Tripod |
Legs Included | No |
Length (in) | 5.9 |
Material | Plastic Composite |
Maximum Distance (ft) | 300 |
Projects Beam 360 degrees | Yes |
Self Leveling | Yes |
Tripod Included | No |
Weight (lbs) | 1.8 lb |
Width (in) | 3.3 |
Wireless Remote Control Included | No |
