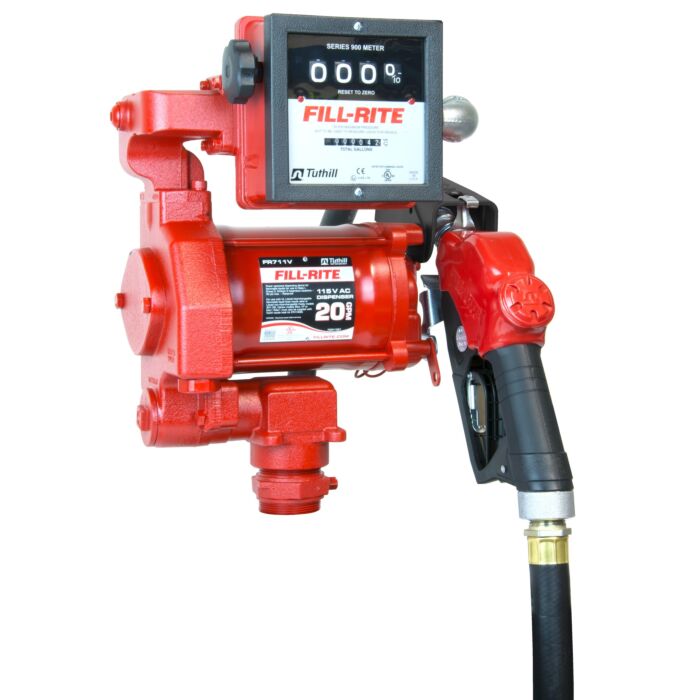

Heavy Duty Fuel Transfer Pump w/ Automatic Nozzle & Mechanical Meter - 20 GPM, 120V
SKU: FR711VA
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1,299.99
Features
Specifications
Downloads
Constructed with heavy-duty materials, Fill-Rite pumps are built to withstand rugged everyday use and extreme weather exposure. Proudly made in the USA with global materials Fill-Rite sets the standard for reliable fuel transfer pumps, meters, and accessories.
- Application: Good for Gas, Diesel, Kerosone, B20, & E15
- Duty Cycle: 30 Minutes
- Inlet: 1" Female NPT
- Outlet: 1" Female NPT
- Mounting Size: 2" NPT/ Bung Mount
- Hose: 1" X 18' Hose
- Nozzle: Automatic - Diesel
| Brand | Fill-Rite |
|---|---|
| UPC | 089404214404 |
| Store Location (Lititz, PA) | Aisle 12, Section T3 |
| Package Length (in) | 20.20" |
| Package Width (in) | 9.60" |
| Package Height (in) | 21.60" |
| Manufacturer Part Number | FR711VA |
| Type | Heavy Duty |
| Voltage Rating | 115 VAC |
| Flow Rate | 20 gpm |
| Inlet Size | 1.25" |
| Outlet Size | 1" |
| Pressure Rating | 23 psi |
| Suction Tube Length | 15 ft |
| Housing Material | Cast Iron |
| Duty Cycle | 30 min On/Off |
| Overall Length | 18.7" |
| Overall Height | 14.4" |
| Overall Width | 14.2" |
| Viscosity | 0.38-2.4 cST |
| Mesh Size | 40 x 40 x 0.010" micron |
| Thread Size | 2" NPT |
| Includes | 901C Mechanical Meter, 1 in x 18 ft UL Listed Hose with Static Ground Wire, 1 in Ultra Hi-Flow Automatic Diesel Nozzle (Red), Hard-Wire |
| Application | Good for Gas, Diesel, Kerosone, B20, & E15 |
| Inlet | 1" Female NPT |
| Outlet | 1" Female NPT |
| Mounting Size | 2" NPT/ Bung Mount |
| Hose | 1" X 18' Hose |
| Nozzle | Automatic - Diesel |
