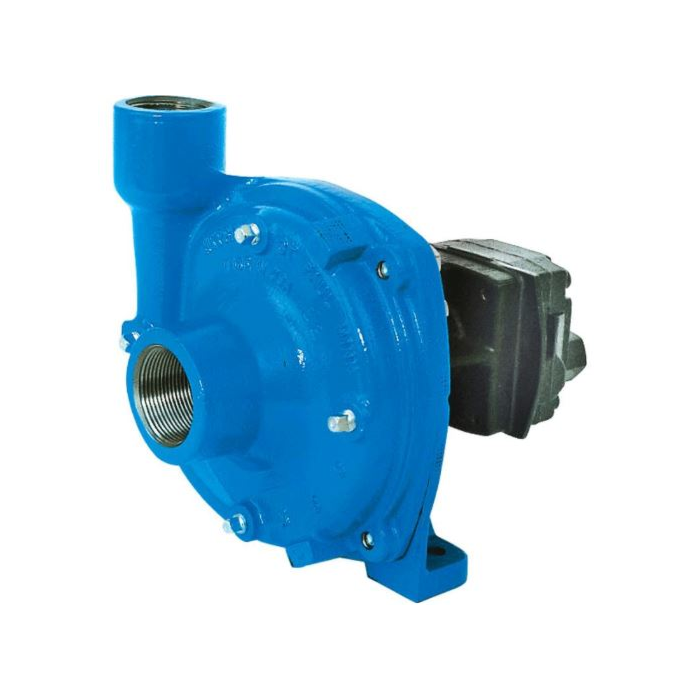

9303C-HM1C Hydraulic Driven Centrifugal Pump with 1-1/2" NPT Suction x 1-1/4" NPT Discharge, 13 GPM Hydraulic Motor
SKU: 9303CHM1C
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1,099.99
Features
Specifications
Downloads
Pentair Hypro centrifugal pumps are commonly used with self-propelled sprayers, large trailer sprayers, and construction equipment. The 9303 Series hydraulic motor driven pump can achieve up to 114 gpm (432 lpm) and 130 psi (9.0 bar).
- Hydraulic motor drive (for open center, closed center and load-sensing systems)
| Brand | Hypro |
|---|---|
| UPC | 734943068000 |
| Store Location (Lititz, PA) | Aisle 10 End Cap |
| Package Length (in) | 13.60" |
| Package Width (in) | 9.60" |
| Package Height (in) | 8.60" |
| Manufacturer Part Number | 9303C-HM1C |
| Flow Rate | 114 GPM |
| Max Pressure | 130 PSI |
| Max Hydraulic Flow | 13 GPM |
| Suction Port | 1-1/2" NPT |
| Discharge Port | 1-1/4" NPT |
| Seal Material | Viton/Ceramic |
