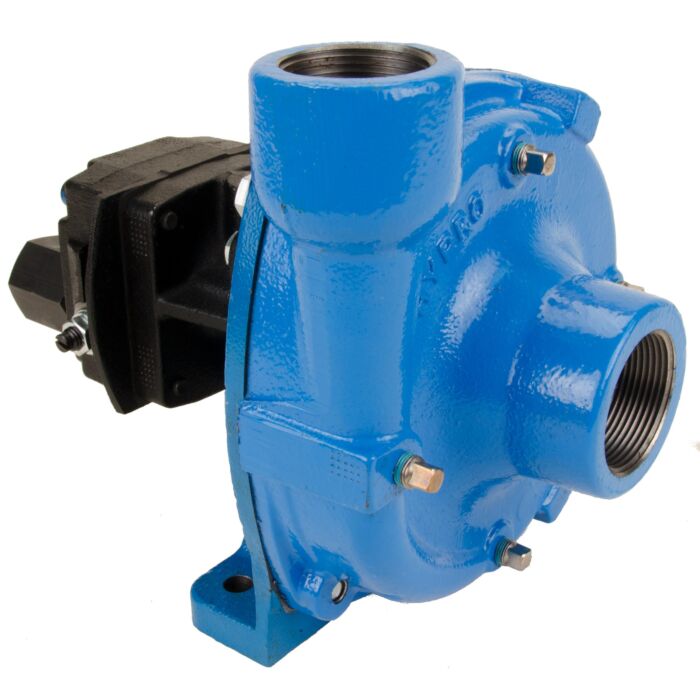

9303C-HM2C Hydraulic Driven Centrifugal Pump with 1-1/2" NPT Suction x 1-1/4" NPT Discharge, 6 GPM Hydraulic Motor
SKU: 9303CHM2C
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1,099.99
Features
Specifications
Downloads
Pentair Hypro centrifugal pumps are commonly used with self-propelled sprayers, large trailer sprayers, and construction equipment. The 9303 Series hydraulic motor driven pump can achieve up to 97 gpm (367 lpm) and 95 psi (6.5 bar).
- Hydraulic motor drive (for open center, closed center and load-sensing systems)
- Max. fluid temperature: 140°F/60°C
| Brand | Hypro |
|---|---|
| UPC | 734943068017 |
| Store Location (Lititz, PA) | Aisle 10 End Cap |
| Package Length (in) | 13.80" |
| Package Width (in) | 9.40" |
| Package Height (in) | 8.60" |
| Manufacturer Part Number | 9303C-HM2C |
| Flow Rate | 97 GPM |
| Max Pressure | 95 PSI |
| Max Hydraulic Flow | 6 GPM |
| Suction Port | 1-1/2" NPT |
| Discharge Port | 1-1/4" NPT |
| Seal Material | Viton/Ceramic |
