Milwaukee

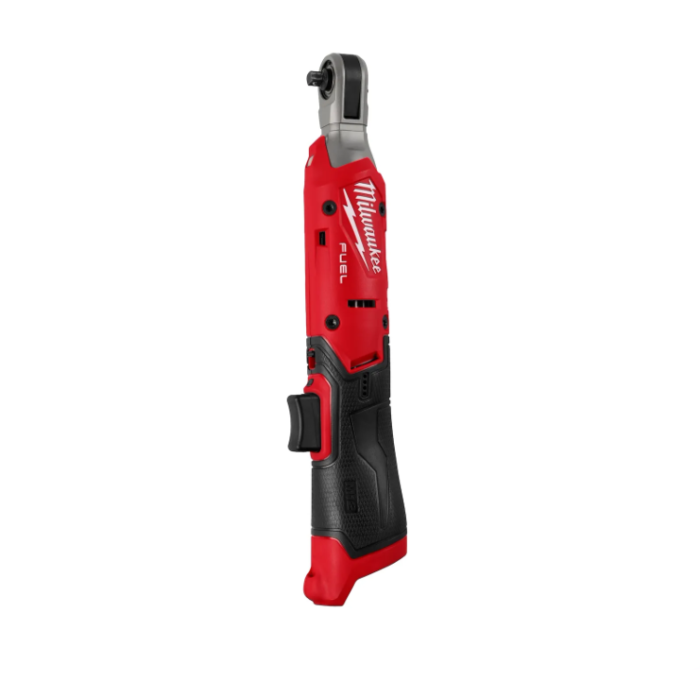

M12 FUEL 1/4 in. Ratchet (Bare Tool)

SKU: M305220
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock
Features chevron-down chevron-up
The M12 FUEL™ 1/4" Ratchet redefines productivity, capability, & comfort for users looking for the ultimate cordless ratchet to tackle any job. The new POWERSTATE™ Brushless outer rotor motor delivers the fastest cordless ratchet with 550 RPM & 45 ft-lbs of torque, giving you the ability to remove and install fasteners at a higher rate of speed. This solution also delivers the most compact head and body size to allow users full body access into tight spaces, maintaining a 3/4" head profile & at only 1.5 lbs bare tool. The M12 FUEL™ Ratchet provides users unmatched comfort with an ergonomic contoured grip & reduces fatigue during a full day of wrenching. It also features a new-to-the-world modular trigger, so users will be able to switch between various button or paddle trigger configurations for customizable comfort. Equipped with a targeted LED work light, battery isolation system, and optimized forward-reverse shuttle, this ratchet tackles core frustrations and delivers uncompromising performance.
  • 550 RPM for fastest application speeds
  • Up to 45 ft-lbs of max torque
  • Most compact head & body size for increased access to tight spaces
  • Contoured grip for unmatched comfort
  • Modular trigger for personalized grip point - button & paddle cap included
  • Raised F/R shuttle for easier direction changes
  • Integrated grease port for self lubrication
  • Metal reinforced housing for increased durability
  • POWERSTATE™ Brushless Outer Rotor Motor for greatest performance
  • REDLINK PLUS™ intelligence prevents damage to the tool and battery due to overloading or overheating
  • Bi-directional firmware for consistent breakaway torque
  • Targeted LED light for greater illumination
  • Part of the M12™ System featuring 150+ tools
Specifications chevron-down chevron-up
Brand Milwaukee
Date Added Nov 20, 2025
UPC 045242869626
Store Location (Lititz, PA) Aisle 24, Section I3
Package Length (in) 12.52"
Package Width (in) 2.17"
Package Height (in) 2.87"
Manufacturer Part Number 3052-20
Battery System M12™
FUEL™ Yes
Motor Type POWERSTATE™ Brushless
Anvil Size 1/4"
Drive Size 1/4"
Anvil Type Ball Detent
Maximum Torque 45 ft-lbs
Height 12"
Length 2.2"
Width 1.6"
Weight Excluding Battery 1.5 lb
Number of Speed Settings Variable
Warranty 5 Year Tool
