The MILWAUKEE® M12™ Green Cross Line & 4-Points Laser provides all-day runtime and the best visibility in its class. Using MILWAUKEE® M12™ REDLITHIUM™ 3.0 CP Battery, users get 9+ hours of continuous runtime for ultimate productivity. The high-intensity green laser offers users superior visibility up to 125' for long-range applications. The vertical and horizontal lines make alignment and level applications easy for users, while the additional 4-points allow for quick transfers from floor to ceiling and squaring applications. The integrated magnetic bracket features micro-control and pivots on the plumb point for easy and fast alignment. The amplified rare earth magnets provide a stronghold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As part of the industry-leading MILWAUKEE® M12™ System, this laser is compatible with all MILWAUKEE® M12™ Batteries.
- All Day Runtime - 9+ Hours
- Brightest Green Laser Optimized for Distance
- Micro Control - Pivots on Point
- Vertical & horizontal lines plus 4-points to level, align, plumb and square.
- 125 ft. Working Range
- 165 ft. Range with Detector
- Accuracy - +/- 1/8" @ 33 ft
- Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
- 210 Degree Horizontal Fan Angle, 165 Degree Vertical Fan Angle
- 2" Plumb Point Access
- Self Leveling - +/- 4° Tilt
- IP54 Rated - Water and Dust Resistant
- 1m Impact Resistance
- 1/4 - 20 & 5/8-11 Thread Mount
- 3 Year Tool Warranty - 2 Year Battery Warranty
Brand | Milwaukee |
---|---|
UPC | 045242616626 |
Store Location (Lititz, PA) | Aisle 25, Section I2 |
Package Length (in) | 6.20" |
Package Width (in) | 18.10" |
Package Height (in) | 15.40" |
Manufacturer Part Number | 3624-21 |
Accurate to Within __ in per 100 ft | 0.375 |
Battery Size | 12 Volt |
Battery Voltage (V) | 12 |
Color / Finish | Black, Red |
Material | Plastic |
Indoor / Outdoor | Indoor |
Laser Level Beam Type | Beam |
Laser Level Functions | Plumb & Level |
Laser Level Mounting Method | Wall or Tripod |
Laser Level Type | Cross-Line |
Legs Included | No |
Maximum Distance (ft) | 125 |
Out -Of - Level Shutoff | No |
Projects Beam 360 degrees | No |
Self Leveling | Yes |
Tripod Included | No |
Weight | 2.25 lbs |
Case Included | Yes |
Case Material | Plastic |

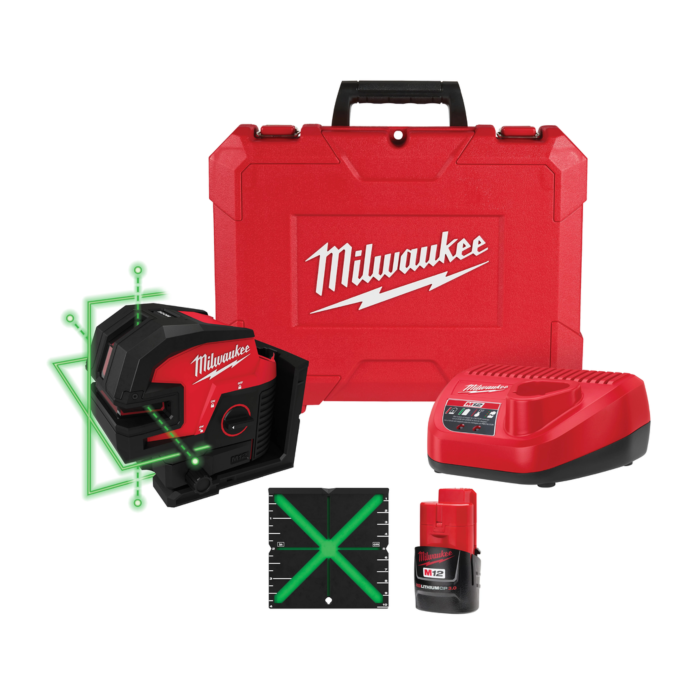

Package Contents | (1) 3624-20 M12™ Green Cross Line & 4-Points Laser, (1) 48-11-2430 M12™ 3.0ah CP Battery, (1) 48-59-2401 M12™ Charger, (1) 48-35-1111 Laser Target, (1) Carrying Case |
