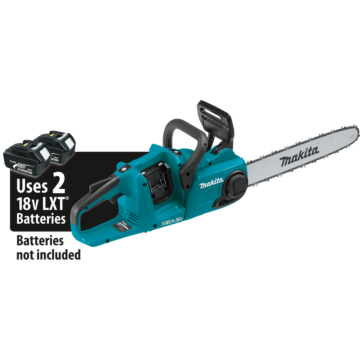

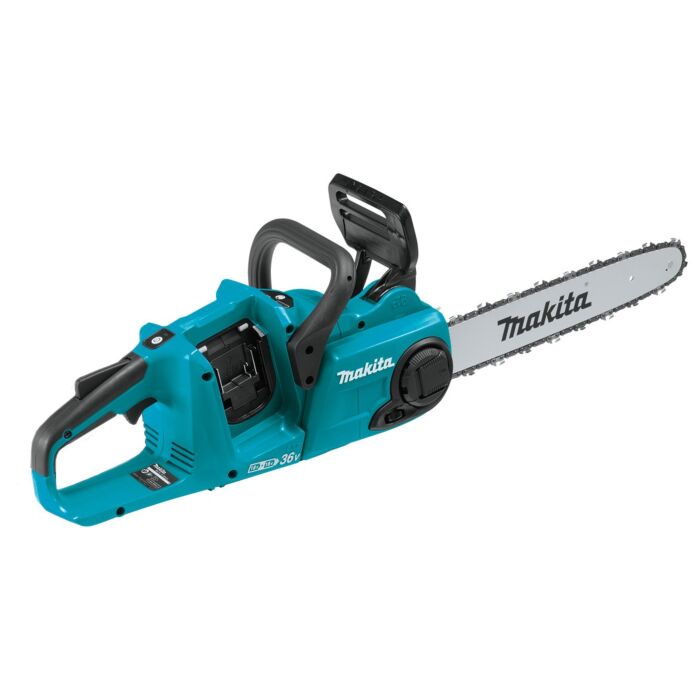

Makita is meeting the demand for cordless outdoor power equipment (OPE) among landscapers and contractors with its 36V (18V X2) LXT® Brushless Chain Saw (XCU03Z, Tool Only). This chain saw is a welcome, high-efficiency solution for cutting and trimming, offering the power equivalent to a gas saw with zero emissions, lower noise (only 100dB(A)), and considerably less maintenance (no oil changes, spark plugs, filters, or fuel draining). It operates on two 18V LXT® batteries (sold separately) for 36V power and run time, ensuring users stay within the preferred 18V battery platform. The efficient Makita outer rotor brushless motor with direct drive system delivers high power, while a variable speed motor with a 14” guide bar achieves 0-3,940 FPM for increased cutting speed. Convenience and productivity features include tool-less chain adjustments, a front hand guard that actuates the chain brake, and an electric brake. As part of Makita’s extensive 18V LXT® system, the tool is protected by Star Protection Computer Controls™, which monitors and guards the tool and battery (sold separately) against overloading, over-discharging, and overheating.
- Built-in L.E.D. on/off switch with auto power-off function; automatically shuts the saw off when operation is delayed
- Low noise level and zero emissions for operator comfort
- Only use genuine Makita batteries and chargers
- Variable speed trigger (0-3,940 FPM) for easy operation
- "Tool-less" chain adjustment for convenient operation and maintenance
- Weighs only 11.35 lb for reduced operator fatigue
- Variable speed trigger and high chain speed (0-3,940 FPM) for improved cutting performance
- Rubberized soft grip top handle is engineered for the user to more easily apply even cutting pressure
- Large oil filling port with view window allows operator to easily add and check bar oil level
- Brushless motor direct-drive system provides high power efficiency equivalent to a 32cc gas chain saw
- Adjustable automatic chain lubrication with large oil reservoir
- 3-year limited warranty
- Compact rear handle design offers improved performance and operator comfort
- Engineered to provide increased dust and water resistance in harsh job site conditions
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging, and over-heating
| Brand | Makita |
|---|---|
| UPC | 088381832731 |
| Store Location (Lititz, PA) | Aisle 24, Section M6 |
| Package Length (in) | 8.90" |
| Package Width (in) | 21.20" |
| Package Height (in) | 10.60" |
| Manufacturer Part Number | XCU03Z |
| Country of Origin | China |
| Guide Bar Length | 14" |
| Shipping Weight | 10.5 lbs. |
| UPC Code | 088381-832731 |
| Net Weight (without battery) | 8.2 lbs. |
| Battery | 2X 18V LXT® Lithium-Ion |
| Power Type | Cordless |
| Motor Type | Brushless |
| Handle Type (Chainsaws) | Rear Handle |
| Form Factor (LXT) | X2 |
| Gauge | .043" |
| Chain Speed | 3,940 FPM |
| Net Weight (with battery) | 11 lbs. |
| Pitch | 3/8" LP |
| Warning | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
