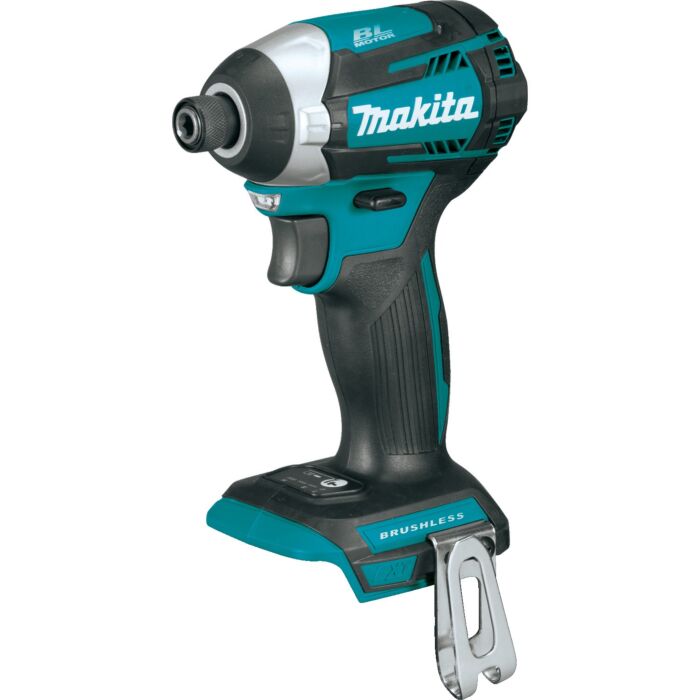

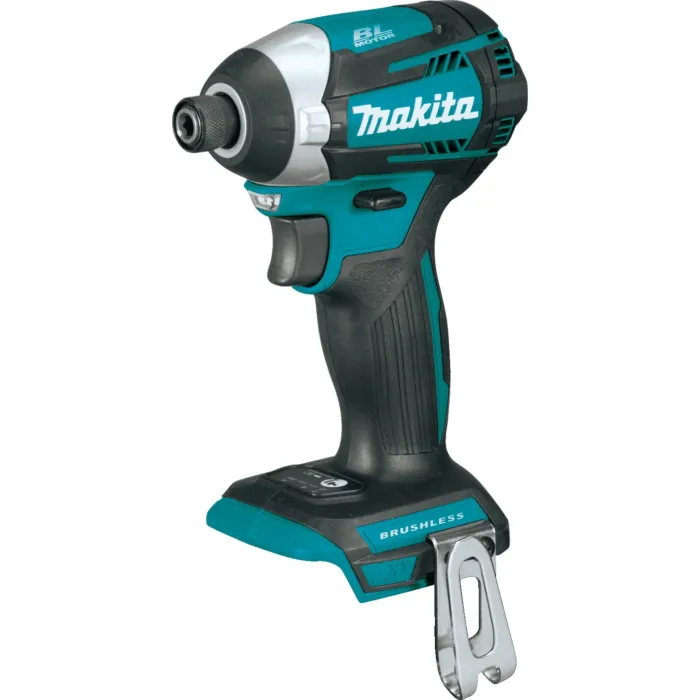

The Makita 18V LXT® Brushless Cordless Impact Driver (model XDT14Z, tool only) is a best-in-class fastening solution, combining high torque, extended run-time, and superior precision in a compact, power-to-weight package. It delivers a full 1,550 in-lb of fastening torque and features the exclusive Quick-Shift Mode™, which uses electronic controls to automatically find the optimal balance of speed and torque for the task. Further enhancing control is the innovative Tightening Mode (T-mode), engineered to minimize screw stripping and breakage by reducing speed just before driving the screw home. These precision features, alongside the three-speed power settings, offer unmatched versatility for tasks ranging from cabinet screws to lag bolts. Measuring only 4-5/8" long, the XDT14Z is ideal for tight spaces. As part of the 18V LXT® system, it is equipped with Star Protection Computer Controls™, which monitors the tool and battery to prevent overloading, over-discharging, and overheating, ensuring maximum performance and versatility across the entire LXT battery line-up.
- Quick-Shift Mode™ uses the brushless motor’s electronic controls to find the best balance of speed and torque for each application
- Tightening Mode (T-mode) for faster tightening of self-drilling screws; helps prevent damage to the screw or workpiece
- 3-speed power selection switch provides precise fastening control for a wide range of applications
- Motor delivers 3,600 max RPM and 1,550 in-lb of max torque
- Motor is electronically controlled to optimize battery energy use for up to 50% longer runtime per charge
- XPT™ is engineered to provide increased dust and water resistance in harsh jobsite conditions
- Motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Compact and ergonomic design at only 4-5/8" long
- Weighs only 3.3 lb with battery (battery not included)
- All metal gear housing for increased job site durability
- Convenient one-touch 1/4" hex chuck for quick bit changes
- Dual L.E.D. lights with an independent on/off switch illuminate the work area
- Rubberized soft grip provides increased comfort on the job
- Hammer and anvil impact mechanism is manufactured using the best raw materials
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging, and over-heating
- Makita technology delivers category-leading charge time
- 3-year limited warranty
- Only use genuine Makita batteries and chargers
| Brand | Makita |
|---|---|
| UPC | 088381824231 |
| Store Location (Lititz, PA) | Aisle 25, Section N5 |
| Package Length (in) | 5.80" |
| Package Width (in) | 8.20" |
| Package Height (in) | 3.40" |
| Manufacturer Part Number | XDT14Z |
| Country of Origin | China |
| UPC Code | 088381-824231 |
| Speed power selection | 3 |
| Motor Type | Brushless |
| Impacts Per Minute (var. 3 spd.) | 0 - 1,100 / 0 - 2,600 / 0 - 3,800 IPM |
| Hex Shank | 1/4" |
| Battery | 18V LXT® Lithium-Ion |
| Shipping Weight | 2.48 lb |
| Net Weight (with battery) | 3.3 lb |
| Form Factor (LXT) | 18V LXT® |
| Maximum Torque | 1,550 in-lb/175N•m |
| Overall Length | 4-5/8" |
| Power Type | Cordless |
| No Load Speed (var. 3 spd.) | 0 - 1,100 / 0 - 2,100 / 0 - 3,600 RPM |
