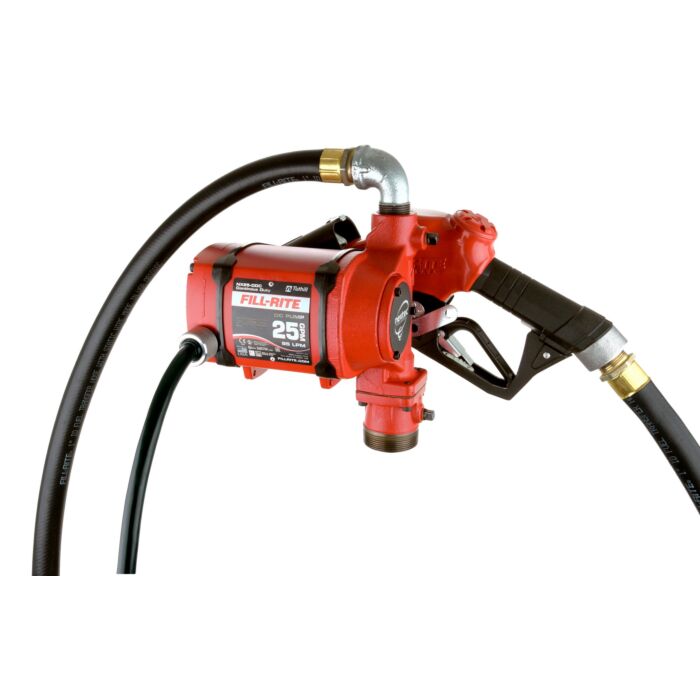

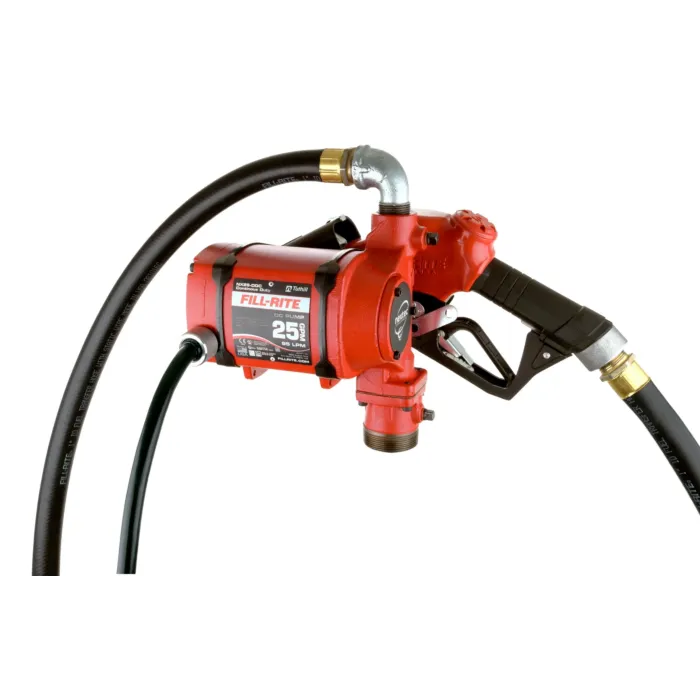

Heavy Duty Fuel Transfer Pump, NexTec Series Pump and Motor w/ Automatic Nozzle - 25 GPM, 12V
SKU: NX25DDCNBAA
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1,299.99
Features
Specifications
Downloads
Constructed with heavy duty materials, Fill-Rite pumps are built to withstand rugged everyday use and extreme weather exposure. Proudly made in the USA with global materials Fill-Rite sets the standard for reliable fuel transfer pumps, meters, and accessories.
- Application: Good for Gas, Diesel, Kerosone, B20, & E15
- Duty Cycle: Constant
- Inlet: 1-1/4" Female NPT
- Outlet: 1" Female NPT
- Mounting Size: 2" BSPT/ Bung Mount
- Hose: 18'
- Nozzle: 1" Ultra Hi-Flow Automatic Diesel
| Brand | Fill-Rite |
|---|---|
| UPC | 089404245484 |
| Store Location (Lititz, PA) | Aisle 12, Section T1 |
| Package Length (in) | 21.80" |
| Package Width (in) | 9.80" |
| Package Height (in) | 20.00" |
| Manufacturer Part Number | NX25-DDCNB-AA |
| HP Rating | 0.33 hp |
| Voltage Rating | 12/24 VDC |
| Flow Rate | 25 gpm |
| Pressure Rating | 25 psi |
| Suction Tube Length | 12 ft |
| Hose Length | 18 ft |
| Duty Cycle | Continuous |
| Mesh Size | 20 x 20 x 0.008 micron |
| Includes | 1" x 18 ft UL Listed Hose with Static Ground Wire, 1" Ultra Hi-Flow Automatic Diesel Nozzle (Red) |
| Application | Good for Gas, Diesel, Kerosone, B20, & E15 |
| Inlet | 1-1/4" Female NPT |
| Outlet | 1" Female NPT |
| Mounting Size | 2" BSPT/ Bung Mount |
| Hose | 18' |
| Nozzle | 1" Ultra Hi-Flow Automatic Diesel |
