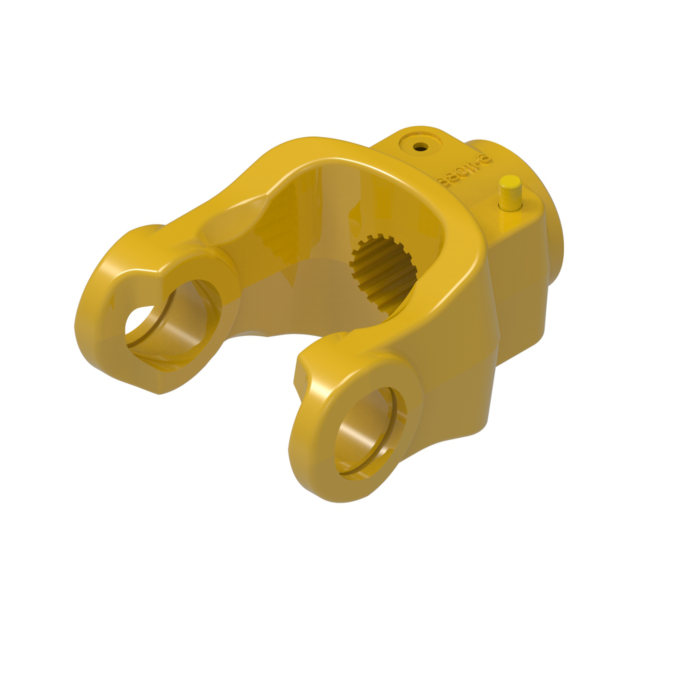

AB8,AW24 series yoke with 1 3/8-21 spline bore and quick disconnect connection
SKU: 1026821 | Location: Aisle 08, Section W5
$99.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8" 6-spline (type 1), 1 3/8" 21-spline (type 2), and 1 3/4" 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2" 8-spline and 1 3/4" 6-spline options are available. Lawn & Turf tractor yokes are offered in 1" 10-spline and 1" 15-spline.
| Brand | Weasler |
|---|---|
| UPC | 728357301556 |
| Store Location (Lititz, PA) | Aisle 08, Section W5 |
| Package Length (in) | 4.60" |
| Package Width (in) | 2.80" |
| Package Height (in) | 6.00" |
| Manufacturer Part Number | 102-6821 |
| Length | 4.961 inch |
| Height | 5.12 inch |
| Width | 3.15 inch |
| Weight | 6.5 lb |
| Series | AB8,AW24 |
| Bore | 1.375" |
| Bore Description | 1 3/8-21 SPLINE |
| Connection 1 Description | QUICK DISCONNECT |
| Bearing Diameter | 1.375" |
| Bearing Span | 4.189" |
| Horsepower at 540 RPM | 120 hp |
| Horsepower at 1000 RPM | 185 hp |
